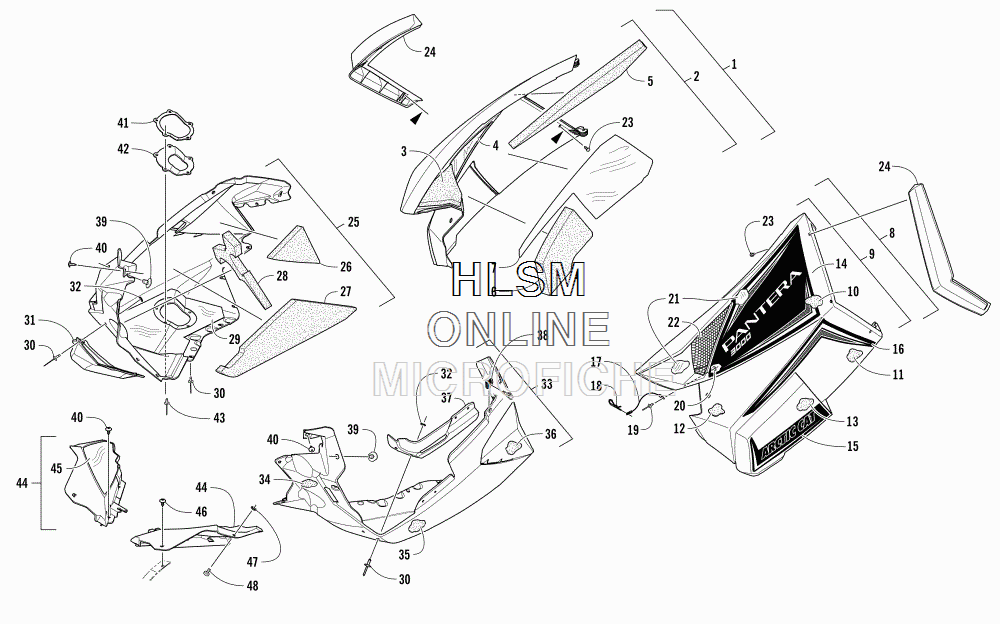

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat PANTERA 3000 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-164 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7 AND 14-20)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7 AND 14-20)
-
23718-786 ...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 17-20)...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 17-20)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - CENTER - RIGHT......FOIL, PROTECTIVE - CENTER - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER SIDE PANEL - REAR RIGHT......FOIL, PROTECTIVE - LOWER SIDE PANEL - REAR RIGHT
-
84718-827 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-20)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-20)
-
94718-825 ...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 10-13 AND 17-20)...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 10-13 AND 17-20)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
130617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
143621-552 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
143621-553 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
153621-314 ...DECAL, SIDE PANEL - LOWER - RIGHT...DECAL, SIDE PANEL - LOWER - RIGHT
-
153621-315 ...DECAL, SIDE PANEL - LOWER - LEFT...DECAL, SIDE PANEL - LOWER - LEFT
-
163621-316 ...DECAL, SIDE PANEL - FRONT - RIGHT...DECAL, SIDE PANEL - FRONT - RIGHT
-
163621-317 ...DECAL, SIDE PANEL - FRONT - LEFT...DECAL, SIDE PANEL - FRONT - LEFT
-
170607-447 ...CABLE...CABLE
-
180605-283 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
198060-486 ...RIVET...RIVET
-
208050-127 ...WASHER...WASHER
-
210619-206 FOIL, PROTECTIVE (OPT.)FOIL, PROTECTIVE (OPT.)
-
225706-531 SCREEN, INTAKE - (OPT.)SCREEN, INTAKE - (OPT.)
-
232623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
246606-706 FLARE, SIDE PANEL - RIGHTFLARE, SIDE PANEL - RIGHT
-
246606-707 FLARE, SIDE PANEL - LEFTFLARE, SIDE PANEL - LEFT
-
253718-422 PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 26-32)PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 26-32)
-
260617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
270617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
280617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
292612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
308061-708 ...RIVET...RIVET
-
312612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
320123-802 ...WASHER...WASHER
-
333718-789 PLATE, SKID - LEFT W/FOAM - BLACK (INC. 30, 32 AND 34-37)PLATE, SKID - LEFT W/FOAM - BLACK (INC. 30, 32 AND 34-37)
-
340617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
350617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
360617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
376606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
382623-005 CLIP, RETAININGCLIP, RETAINING
-
396606-592 PIN, RETAININGPIN, RETAINING
-
401623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
412612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
423612-189 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
438061-710 RIVETRIVET
-
443718-302 FASCIA, FRONT - RIGHT - BLACK (INC. 45)FASCIA, FRONT - RIGHT - BLACK (INC. 45)
-
446606-579 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
456606-404 ...FOIL, PROTECTIVE - FILLER PANEL - RIGHT...FOIL, PROTECTIVE - FILLER PANEL - RIGHT
-
460623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
472623-001 NUT, PUSHNUT, PUSH
-
481623-999 SCREW, THUMBSCREW, THUMB
