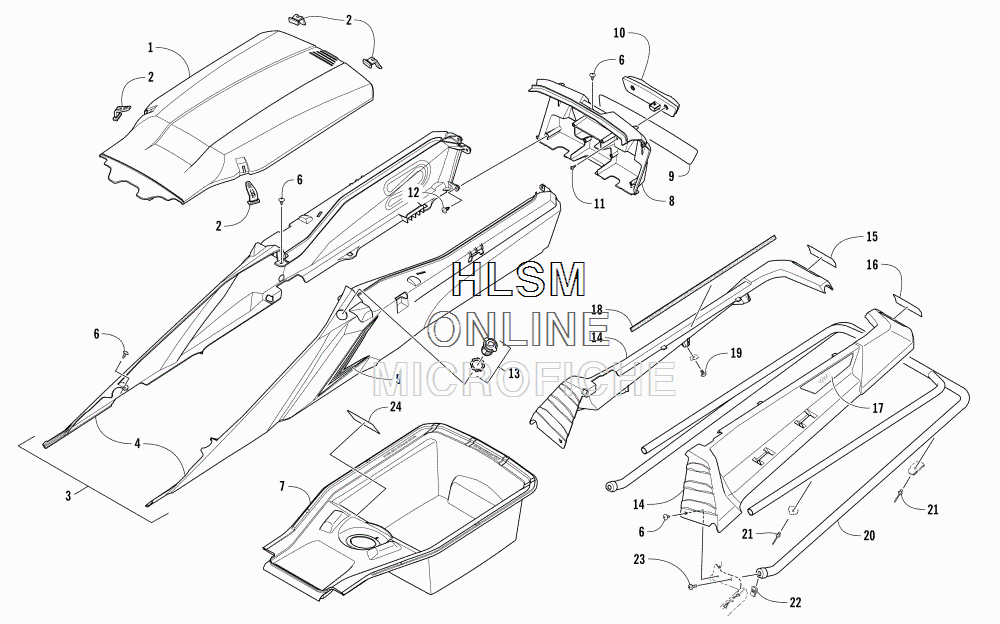

REAR BUMPER- STORAGE- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTERA 7000 LTD BLACK EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
16606-697 LID, STORAGE BOXLID, STORAGE BOX
-
24606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
35718-006 FASCIA, RACK - W/DECAL - RIGHTFASCIA, RACK - W/DECAL - RIGHT
-
35718-007 FASCIA, RACK - W/DECAL - LEFTFASCIA, RACK - W/DECAL - LEFT
-
46606-684 FASCIA, FRONT RACK - RIGHT - BLACKFASCIA, FRONT RACK - RIGHT - BLACK
-
46606-685 FASCIA, FRONT RACK - LEFT - BLACKFASCIA, FRONT RACK - LEFT - BLACK
-
53621-318 DECAL, REAR PANEL - RIGHTDECAL, REAR PANEL - RIGHT
-
53621-319 DECAL, REAR PANEL - LEFTDECAL, REAR PANEL - LEFT
-
62623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
77606-263 STORAGE TRAYSTORAGE TRAY
-
87606-318 FASCIA, REAR RACKFASCIA, REAR RACK
-
92621-396 DECAL, RACKDECAL, RACK
-
100609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
118476-512 SCREW, MACHINESCREW, MACHINE
-
122623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130641-897 OUTLET, ACCESSORY (12V)OUTLET, ACCESSORY (12V)
-
144718-346 PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 15-17)PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 15-17)
-
144718-347 PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 15-17)PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 15-17)
-
155611-852 ...DECAL, WARNING - TOWING (FRENCH)...DECAL, WARNING - TOWING (FRENCH)
-
165611-853 ...DECAL, WARNING - TOWING (ENGLISH)...DECAL, WARNING - TOWING (ENGLISH)
-
171621-394 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
171621-395 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
180617-742 SEAL, BUMPER PANELSEAL, BUMPER PANEL
-
191623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201707-628 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
218060-706 RIVETRIVET
-
220423-577 CLIP, U-NUTCLIP, U-NUT
-
238477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
242621-316 DECAL, CAPACITY - STORAGE BOXDECAL, CAPACITY - STORAGE BOX
