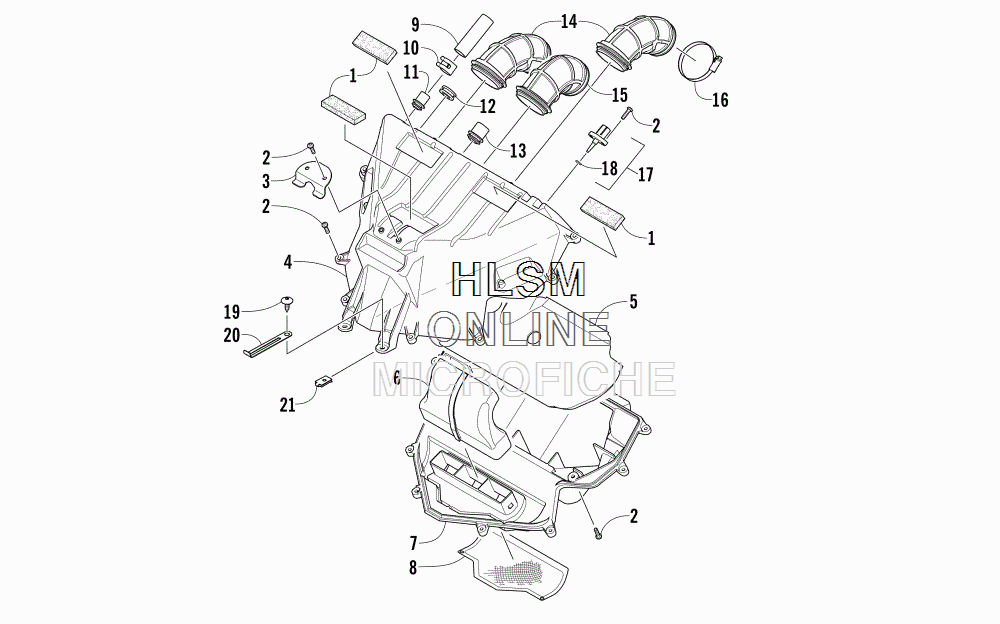

AIR INTAKE ASSEMBLY для Arctic Cat PANTERA 7000 LTD BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15606-682 PADPAD
-
21623-251 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30613-142 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
42670-499 SILENCER, AIR - UPPERSILENCER, AIR - UPPER
-
52670-322 PLATE, BAFFLEPLATE, BAFFLE
-
62670-365 VENT, INTAKEVENT, INTAKE
-
72670-498 SILENCER, AIR - LOWERSILENCER, AIR - LOWER
-
82670-396 SCREEN, INTAKESCREEN, INTAKE
-
90410-143 HOSE - 25 FTHOSE - 25 FT
-
101623-966 CLAMP, HOSECLAMP, HOSE
-
112670-432 FITTINGFITTING
-
122623-039 GROMMETGROMMET
-
132670-433 FITTINGFITTING
-
142670-279 BOOT, INTAKEBOOT, INTAKE
-
152670-280 BOOT, INTAKEBOOT, INTAKE
-
160423-066 CLAMPCLAMP
-
170430-055 SENSOR, AIR TEMPERATURE (INC. 18)SENSOR, AIR TEMPERATURE (INC. 18)
-
185507-224 ...O-RING...O-RING
-
192623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
211623-052 CLIP, U-NUTCLIP, U-NUT
