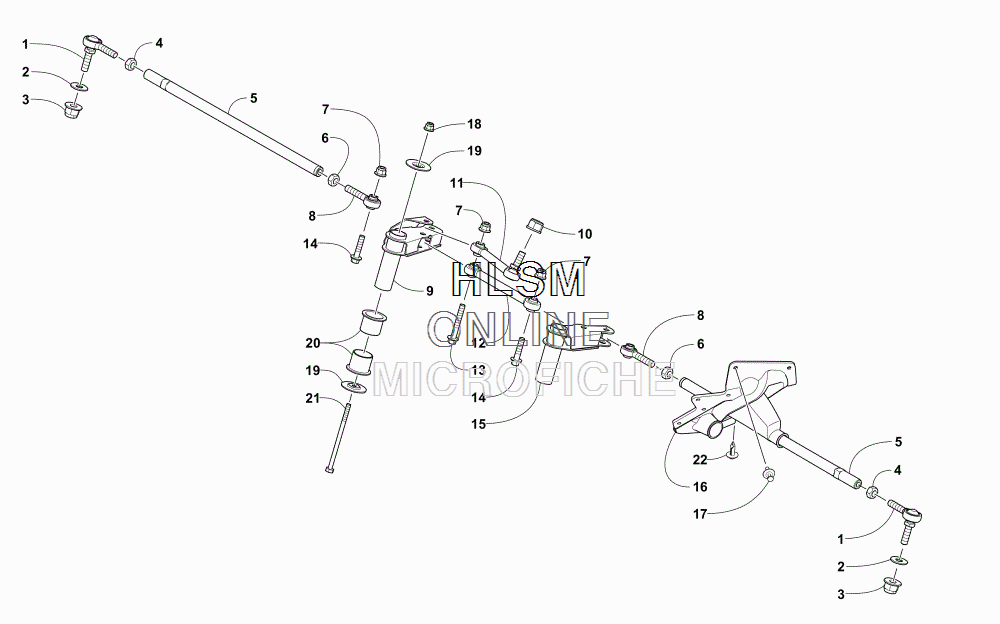

TIE ROD ASSEMBLY для Arctic Cat PANTERA 7000 XT LTD BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11605-019 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
21623-803 WASHERWASHER
-
38427-002 NUT, LOCKNUT, LOCK
-
40423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
51605-133 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
68420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
78427-802 NUTNUT
-
81605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
91705-464 ARM, STEERINGARM, STEERING
-
102623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
111605-129 TIE ROD, STEERINGTIE ROD, STEERING
-
121605-134 TIE ROD, STEERINGTIE ROD, STEERING
-
138408-855 SCREW, CAPSCREW, CAP
-
148408-835 SCREW, CAPSCREW, CAP
-
151705-466 ARM, STEERINGARM, STEERING
-
161605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
161605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
170623-362 CLIP, RETAININGCLIP, RETAINING
-
188427-602 NUT, LOCKNUT, LOCK
-
191623-807 WASHERWASHER
-
201605-161 BUSHINGBUSHING
-
218402-600 SCREW, CAPSCREW, CAP
-
220623-243 CLIP, RETAININGCLIP, RETAINING
