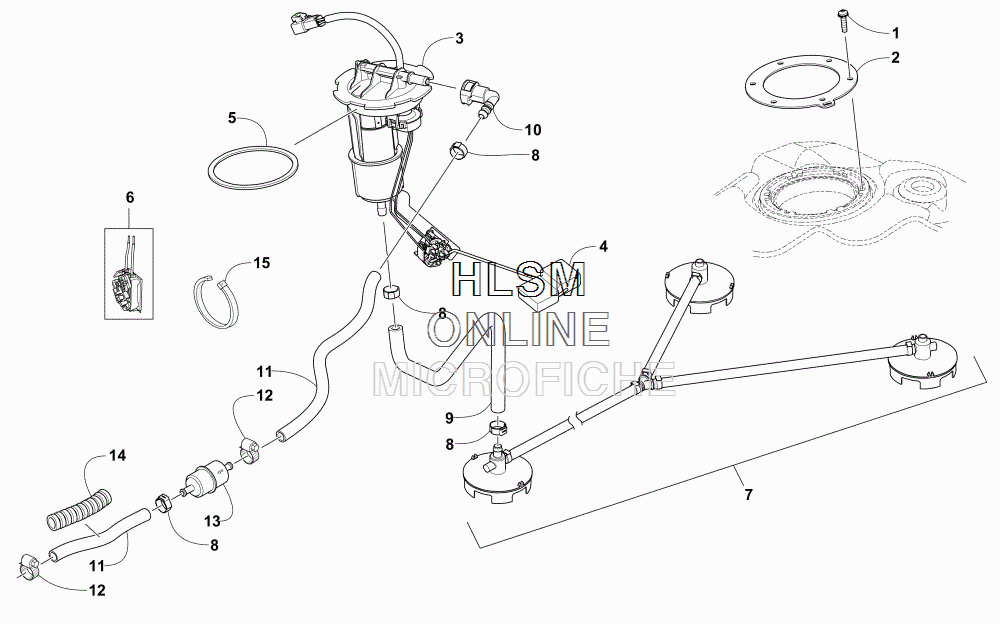

FUEL PUMP ASSEMBLY для Arctic Cat XF 6000 CROSS COUNTRY LTD ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-358 PUMP, FUEL - ASSEMBLY (INC. 4)PUMP, FUEL - ASSEMBLY (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
61770-170 FUEL LEVEL SENSOR KITFUEL LEVEL SENSOR KIT
-
72670-377 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
80610-563 CLAMP, HOSECLAMP, HOSE
-
92670-442 HOSE, FUEL PUMP/PICKUPHOSE, FUEL PUMP/PICKUP
-
101670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
110610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
120623-373 CLAMP, HOSECLAMP, HOSE
-
131670-825 FILTER, FUELFILTER, FUEL
-
141619-349 LOOM, 5/8" NON-SLIT - 5 FTLOOM, 5/8" NON-SLIT - 5 FT
-
150123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
