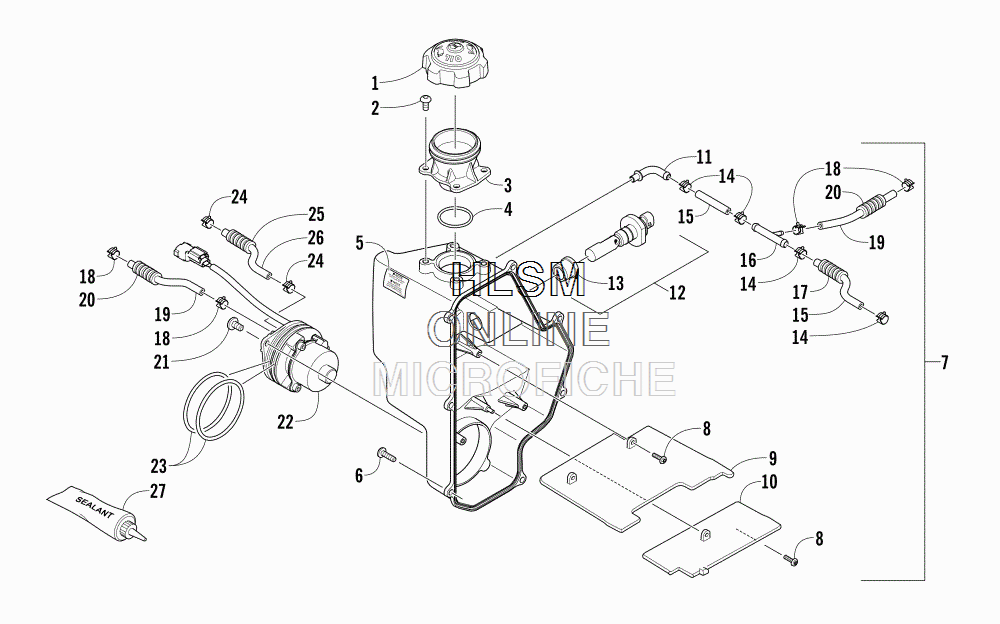

OIL TANK ASSEMBLY для Arctic Cat XF 6000 CROSSTREK ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
12670-447 CAP, OIL TANKCAP, OIL TANK
-
21623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
32670-329 NECK, OIL FILLNECK, OIL FILL
-
42623-158 O-RINGO-RING
-
50621-786 DECAL, OIL TANKDECAL, OIL TANK
-
61623-814 SCREW, MACHINESCREW, MACHINE
-
71770-062 TANK, OIL (INC. 8-11)TANK, OIL (INC. 8-11)
-
82623-007 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
92670-354 ...PLATE, BAFFLE - UPPER...PLATE, BAFFLE - UPPER
-
102670-359 ...PLATE, BAFFLE - LOWER...PLATE, BAFFLE - LOWER
-
110913-021 ...FITTING, ELBOW...FITTING, ELBOW
-
120609-915 SWITCH, LEVEL - OIL (INC. 13)SWITCH, LEVEL - OIL (INC. 13)
-
130609-924 ...GROMMET...GROMMET
-
141623-351 CLAMP, HOSECLAMP, HOSE
-
150610-968 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
162670-362 T-FITTINGT-FITTING
-
171619-359 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
182623-013 CLAMP, HOSECLAMP, HOSE
-
190610-967 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
205706-536 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
218468-613 SCREW, CAPSCREW, CAP
-
220912-003 PUMP, OIL (INC. 23)PUMP, OIL (INC. 23)
-
230930-046 ...O-RING...O-RING
-
240923-050 CLAMP, HOSECLAMP, HOSE
-
251619-356 CONDUIT, HIGH TEMPCONDUIT, HIGH TEMP
-
260610-966 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
271048-063 SEALANT - 70 MLSEALANT - 70 ML
