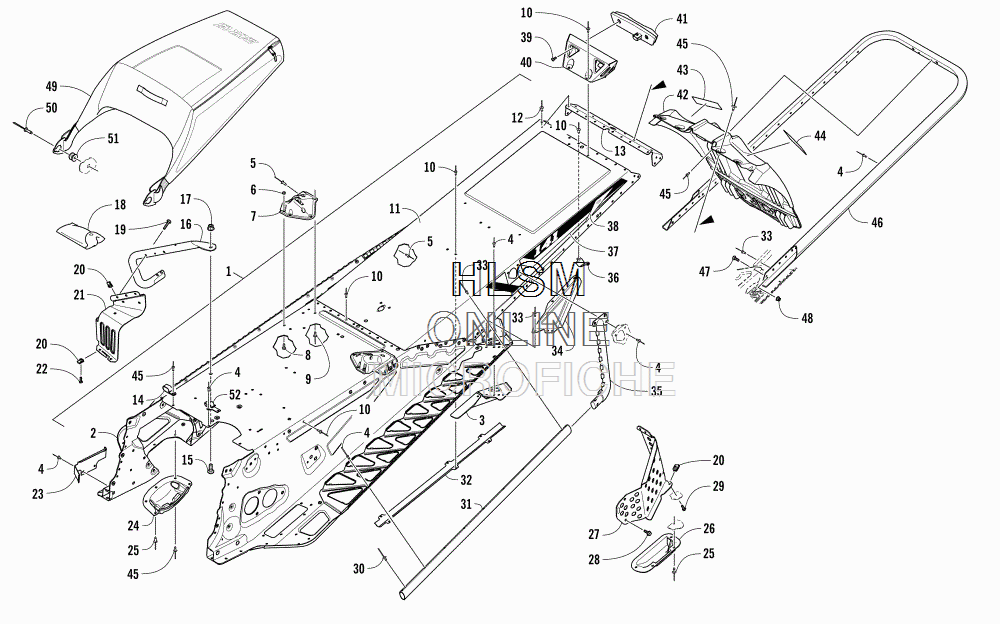

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY LTD ES 141 BLACK EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
-2707-052 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-445 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-294 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 RIVETRIVET
-
51623-206 RIVETRIVET
-
68422-502 NUTNUT
-
71707-692 BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACKBRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 BRACKET, MOUNTING - REAR SPAR - LEFT - BLACKBRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 SCREW, MACHINESCREW, MACHINE
-
91623-257 RIVETRIVET
-
108060-702 RIVETRIVET
-
111707-838 TUNNEL, REAR - BLACKTUNNEL, REAR - BLACK
-
128060-504 RIVETRIVET
-
131707-725 END CAP, TUNNEL - BLACKEND CAP, TUNNEL - BLACK
-
141623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
161707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
178427-802 NUTNUT
-
180744-089 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
211707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
211707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
230608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
241607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
258061-708 RIVETRIVET
-
260607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
272707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
288408-613 SCREW, CAPSCREW, CAP
-
298470-520 SCREW, MACHINESCREW, MACHINE
-
301623-130 RIVETRIVET
-
311707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
320630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331623-241 RIVETRIVET
-
341707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
341707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
351707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
351707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
373621-510 DECAL, TUNNEL - "141" - RIGHTDECAL, TUNNEL - "141" - RIGHT
-
373621-511 DECAL, TUNNEL - "141" - LEFTDECAL, TUNNEL - "141" - LEFT
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
398470-510 SCREW, MACHINESCREW, MACHINE
-
400730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
462707-793 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-600 SADDLEBAGSADDLEBAG
-
508060-630 RIVETRIVET
-
511623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
520645-709 CLIP, ROUTINGCLIP, ROUTING
