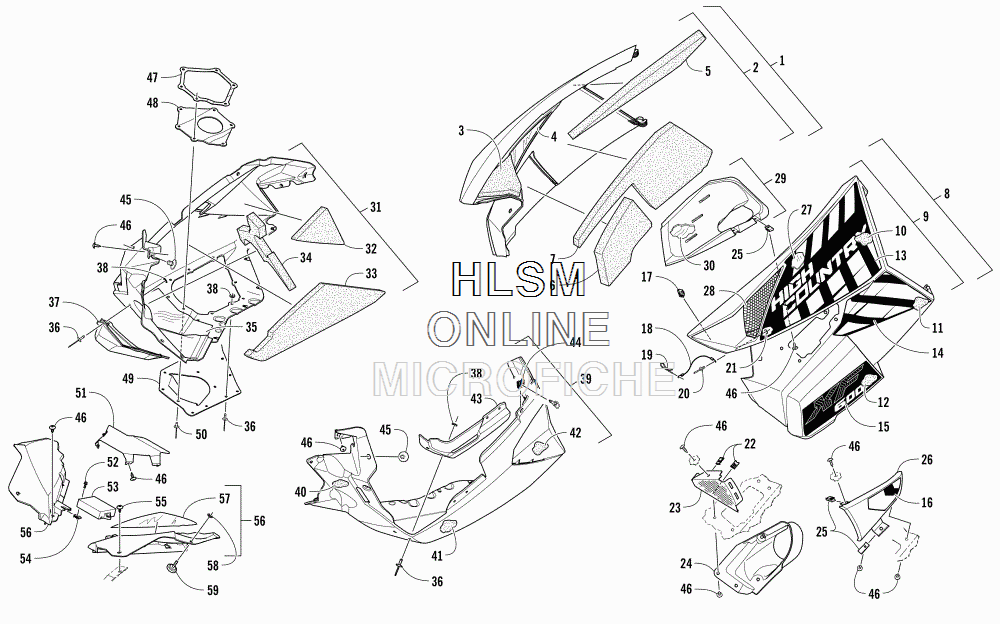

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY LTD ES 141 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-286 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7, 13-16 AND 18-21)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7, 13-16 AND 18-21)
-
23718-180 ...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7, AND 13-16)...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7, AND 13-16)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
85718-285 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-15, AND 17-21)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-15, AND 17-21)
-
94718-553 ...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12, AND 17-21)...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12, AND 17-21)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
133621-514 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT...DECAL, SIDE PANEL - UPPER REAR - RIGHT
-
133621-515 ...DECAL, SIDE PANEL - UPPER REAR - LEFT...DECAL, SIDE PANEL - UPPER REAR - LEFT
-
143621-500 ...DECAL, SIDE PANEL - LOWER - RIGHT...DECAL, SIDE PANEL - LOWER - RIGHT
-
143621-501 ...DECAL, SIDE PANEL - LOWER - LEFT...DECAL, SIDE PANEL - LOWER - LEFT
-
153621-504 ...DECAL, SIDE PANEL - "6000" - RIGHT - BLACK...DECAL, SIDE PANEL - "6000" - RIGHT - BLACK
-
153621-505 ...DECAL, SIDE PANEL - "6000" - LEFT -BLACK...DECAL, SIDE PANEL - "6000" - LEFT -BLACK
-
163621-502 DECAL, SIDE PANEL - MID - RIGHTDECAL, SIDE PANEL - MID - RIGHT
-
163621-509 DECAL, SIDE PANEL - VENT - LEFTDECAL, SIDE PANEL - VENT - LEFT
-
171623-637 CLIP, U-NUTCLIP, U-NUT
-
180607-447 CABLECABLE
-
190605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
208060-486 RIVETRIVET
-
218050-127 WASHERWASHER
-
221623-052 CLIP, U-NUTCLIP, U-NUT
-
236606-925 SCREEN, INTAKESCREEN, INTAKE
-
242602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
251623-030 CLIP, U-NUTCLIP, U-NUT
-
262602-793 DUCT, INTAKE - OUTER - BLACKDUCT, INTAKE - OUTER - BLACK
-
270619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
285706-531 SCREEN, INTAKE - UPPER - LEFT - BLACKSCREEN, INTAKE - UPPER - LEFT - BLACK
-
291702-369 DUCT, BELT COOLING (INC. 30)DUCT, BELT COOLING (INC. 30)
-
306606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
314718-158 PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 32-38)PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 32-38)
-
320617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
330617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
340617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
352612-970 ...FOIL, PROTECTIVE - RIGHT...FOIL, PROTECTIVE - RIGHT
-
368061-708 ...RIVET...RIVET
-
372612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
380123-802 ...WASHER...WASHER
-
393718-789 PLATE, SKID - LEFT W/FOAM - BLACK (INC. 36, 38, AND 40-43)PLATE, SKID - LEFT W/FOAM - BLACK (INC. 36, 38, AND 40-43)
-
400617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
410617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
420617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
436606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
442623-005 CLIP, RETAININGCLIP, RETAINING
-
456606-592 PIN, RETAININGPIN, RETAINING
-
461623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
472612-972 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
482612-971 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
491712-963 DEFLECTOR, EXHAUST OUTLET - BLACKDEFLECTOR, EXHAUST OUTLET - BLACK
-
508061-710 RIVETRIVET
-
516606-940 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
528408-620 SCREW, CAPSCREW, CAP
-
530730-267 ECMECM
-
540423-031 NUT, SPEEDNUT, SPEED
-
550623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
566606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
563718-303 FASCIA, FRONT - LEFT - BLACK (INC. 57)FASCIA, FRONT - LEFT - BLACK (INC. 57)
-
576606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
582623-001 NUT, PUSHNUT, PUSH
-
591623-999 SCREW, THUMBSCREW, THUMB
