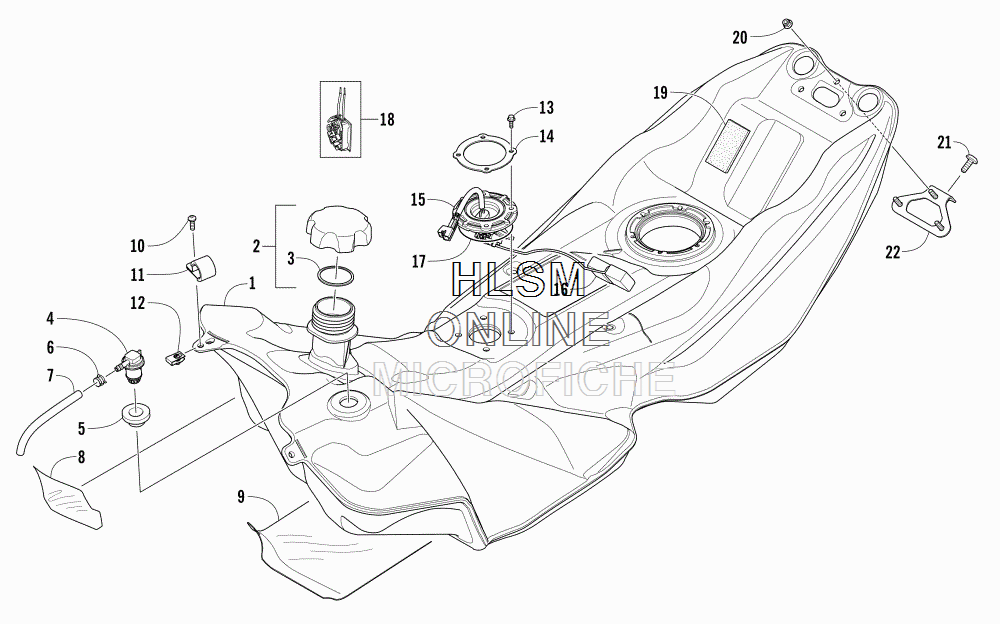

GAS TANK ASSEMBLY для Arctic Cat XF 7000 CROSSTREK GREEN EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
11770-035 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
61623-233 CLAMP, HOSECLAMP, HOSE
-
76101-009 HOSE - 50 FTHOSE - 50 FT
-
82670-451 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
92670-434 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
108470-516 SCREW, MACHINESCREW, MACHINE
-
112623-006 CLAMP, CABLECLAMP, CABLE
-
121623-637 CLIP, U-NUTCLIP, U-NUT
-
138408-517 SCREW, CAPSCREW, CAP
-
142670-431 PLATE, RETAININGPLATE, RETAINING
-
152670-386 SENSOR, FUEL LEVEL (INC. 16)SENSOR, FUEL LEVEL (INC. 16)
-
162670-235 ...FLOAT...FLOAT
-
172623-035 O-RINGO-RING
-
181770-170 FUEL LEVEL SENSOR KITFUEL LEVEL SENSOR KIT
-
190645-760 PAD, BATTERYPAD, BATTERY
-
208427-602 NUT, LOCKNUT, LOCK
-
218477-616 SCREW, MACHINESCREW, MACHINE
-
225706-771 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
