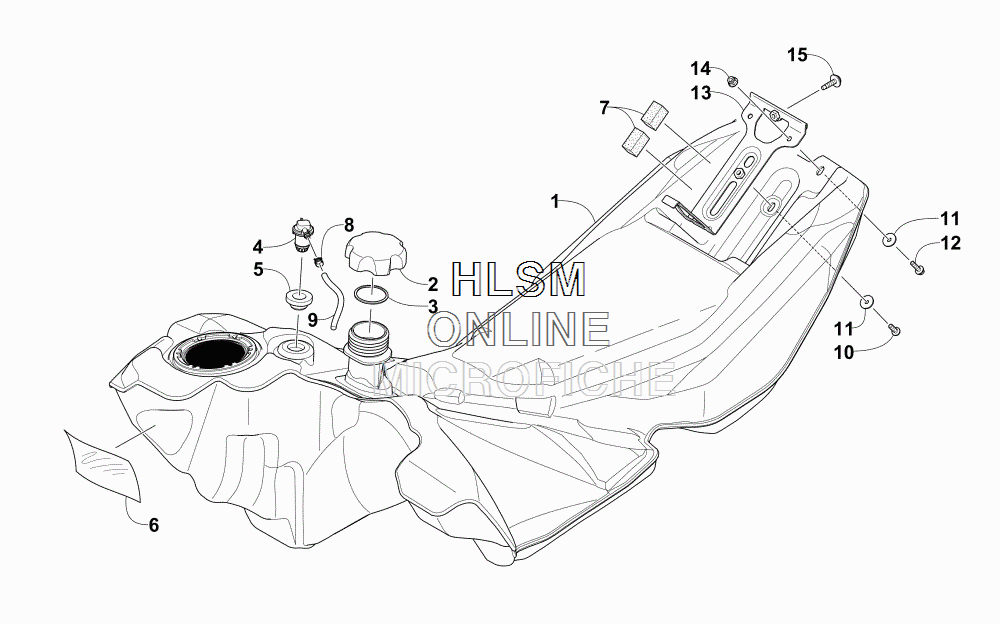

GAS TANK ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11770-050 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
22670-153 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
60619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
70617-667 PAD, FOAMPAD, FOAM
-
81623-233 CLAMP, HOSECLAMP, HOSE
-
96101-009 HOSE - 50 FTHOSE - 50 FT
-
108468-616 SCREW, MACHINESCREW, MACHINE
-
118050-223 WASHER, FLATWASHER, FLAT
-
128410-620 SCREW, MACHINESCREW, MACHINE
-
135706-098 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
148427-602 NUT, LOCKNUT, LOCK
-
150423-609 SCREW, MACHINESCREW, MACHINE
