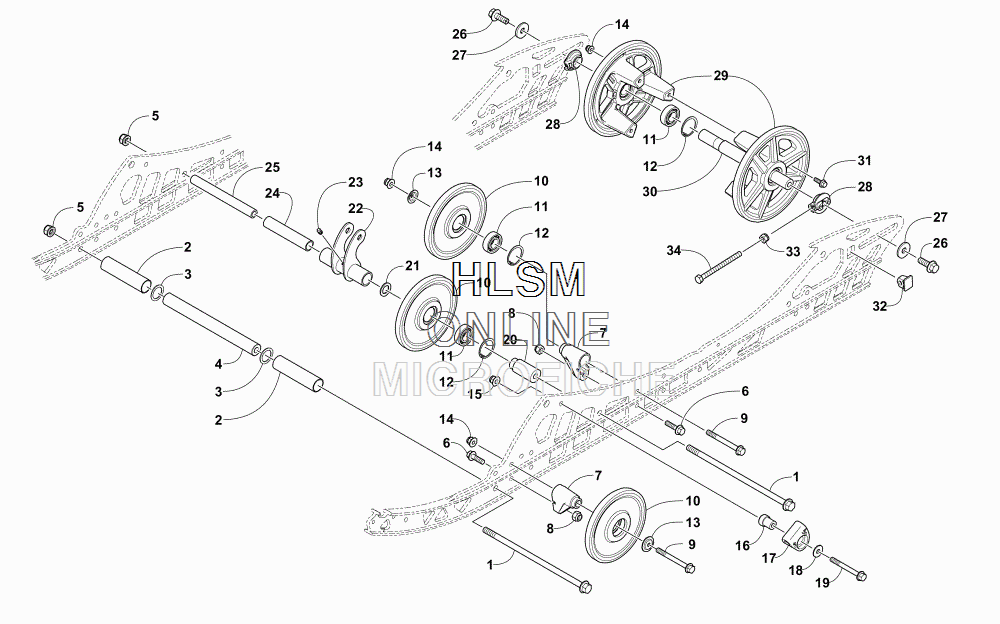

IDLER WHEEL ASSEMBLY для Arctic Cat XF 9000 CROSSTREK 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
11423-431 SCREW, CAPSCREW, CAP
-
23604-083 SPACERSPACER
-
30623-912 WASHERWASHER
-
43604-269 AXLEAXLE
-
52623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88422-602 NUTNUT
-
98413-675 SCREW, CAPSCREW, CAP
-
103604-039 WHEEL, IDLER (INC. SIX NO. 11-12)WHEEL, IDLER (INC. SIX NO. 11-12)
-
113604-033 ...BEARING...BEARING
-
120623-946 ...RING, RETAINING...RING, RETAINING
-
132623-025 WASHERWASHER
-
148427-602 NUT, LOCKNUT, LOCK
-
158427-802 NUTNUT
-
163604-204 BLOCK, SLIDEBLOCK, SLIDE
-
172604-515 SLIDE, SPRINGSLIDE, SPRING
-
188450-133 WASHERWASHER
-
198408-855 SCREW, CAPSCREW, CAP
-
203604-327 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
211623-794 WASHERWASHER
-
221704-674 PIVOT, SHOCK (INC. 23)PIVOT, SHOCK (INC. 23)
-
231623-010 ...FITTING, GREASE...FITTING, GREASE
-
243604-325 SPACERSPACER
-
253604-285 AXLEAXLE
-
268413-031 SCREW, CAPSCREW, CAP
-
271623-931 WASHERWASHER
-
283604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
294604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 11-12)WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 11-12)
-
303604-640 AXLE, REARAXLE, REAR
-
318408-620 SCREW, CAPSCREW, CAP
-
323604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
338422-802 NUT, LOCKNUT, LOCK
-
341623-682 SCREW, CAPSCREW, CAP
