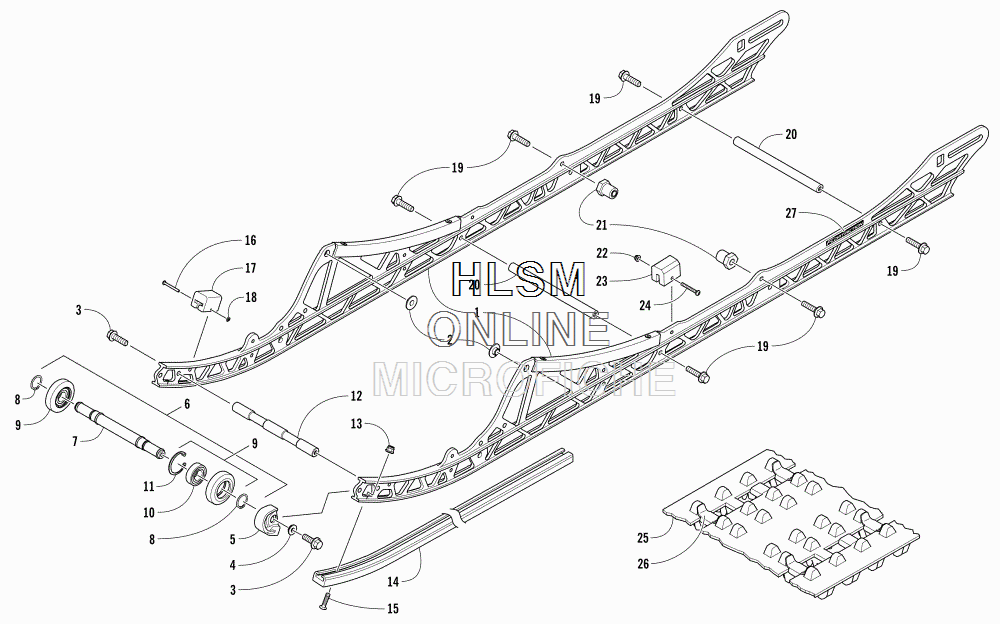

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 1.7 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-3704-127 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13704-046 RAIL, FORMED - BLACKRAIL, FORMED - BLACK
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW, CAPSCREW, CAP
-
43604-928 SPACERSPACER
-
54604-214 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
62704-964 AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)
-
73604-921 ...AXLE...AXLE
-
81423-001 ...RING, RETAINING...RING, RETAINING
-
93604-844 ...WHEEL, IDLER - BLACK (INC. 10-11)...WHEEL, IDLER - BLACK (INC. 10-11)
-
103604-033 ......BEARING......BEARING
-
110623-946 ......RING, RETAINING......RING, RETAINING
-
123604-630 AXLEAXLE
-
138047-366 NUT, LOCKNUT, LOCK
-
144604-241 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
150123-859 SCREW, MACHINESCREW, MACHINE
-
160123-767 RIVET, SOLIDRIVET, SOLID
-
170104-631 PAD, SHOCKPAD, SHOCK
-
180123-766 NUT, PUSHNUT, PUSH
-
198408-826 SCREW, CAPSCREW, CAP
-
204604-252 AXLEAXLE
-
213604-635 BUSHING, STOPBUSHING, STOP
-
228427-502 NUT, LOCKNUT, LOCK
-
231604-429 PAD, SHOCKPAD, SHOCK
-
248470-540 SCREW, MACHINESCREW, MACHINE
-
253602-033 TRACK ASSEMBLY (INC. 26)TRACK ASSEMBLY (INC. 26)
-
262602-386 ...CLIP, GUIDE...CLIP, GUIDE
-
273621-338 DECAL, "FLOAT ACTION"DECAL, "FLOAT ACTION"
