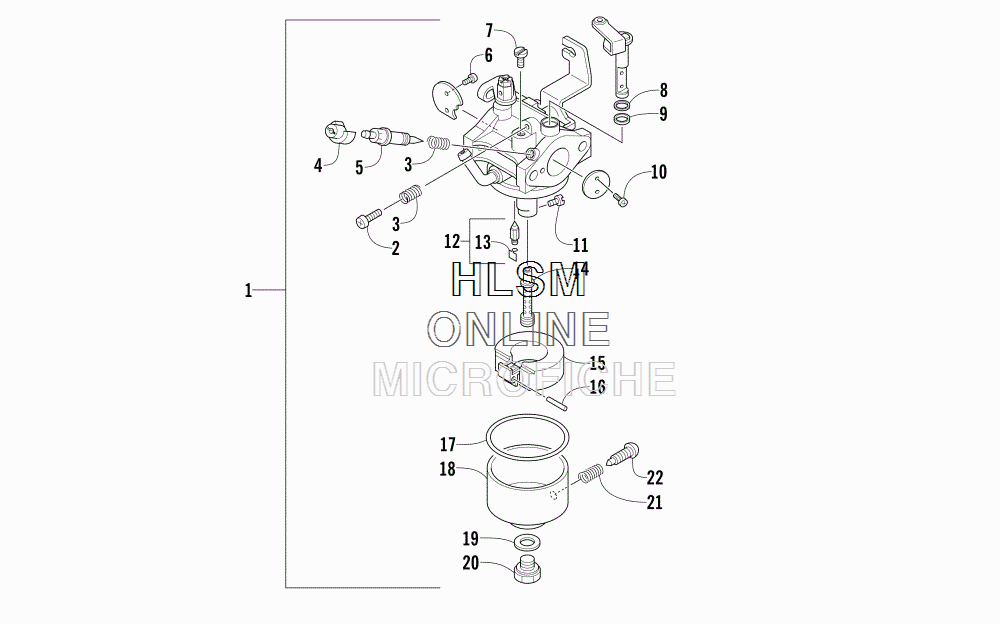

CARBURETOR ASSEMBLY для Arctic Cat ZR 120 INTERNATIONAL GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13020-023 CARBURETOR ASSEMBLY (INC. 2-22)CARBURETOR ASSEMBLY (INC. 2-22)
-
23020-001 ...SCREW, THROTTLE STOP...SCREW, THROTTLE STOP
-
33020-005 ...SPRING...SPRING
-
43020-086 ...CAP, ADJUSTER SCREW...CAP, ADJUSTER SCREW
-
53020-088 ...ADJUSTER SCREW, FUEL IDLE...ADJUSTER SCREW, FUEL IDLE
-
63020-091 ...SCREW, MACHINE...SCREW, MACHINE
-
73020-131 ...PILOT JET (37.5)...PILOT JET (37.5)
-
83020-003 ...WASHER...WASHER
-
93020-004 ...WASHER...WASHER
-
103020-090 ...SCREW, MACHINE...SCREW, MACHINE
-
113020-130 ...MAIN JET (77.5)...MAIN JET (77.5)
-
123020-084 ......NEEDLE JET - ASSEMBLY (INC. 13)......NEEDLE JET - ASSEMBLY (INC. 13)
-
133020-080 .........CLIP, RETAINING.........CLIP, RETAINING
-
143020-089 ...NOZZLE...NOZZLE
-
153020-085 ...FLOAT...FLOAT
-
163020-002 ...PIN, FLOAT...PIN, FLOAT
-
173020-082 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
183020-081 ...CHAMBER, FLOAT...CHAMBER, FLOAT
-
193020-083 ...WASHER...WASHER
-
203020-087 ...PLUG, DRAIN...PLUG, DRAIN
-
213020-005 ...SPRING...SPRING
-
223020-079 ...SCREW, MACHINE...SCREW, MACHINE
