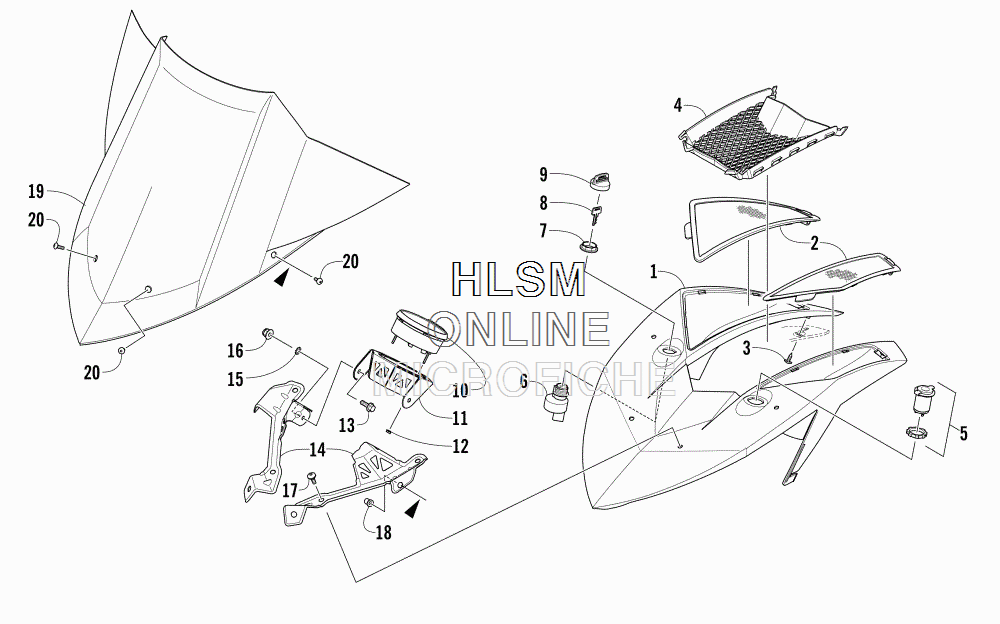

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 4000 LXR 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
16606-313 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
20608-736 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
20608-737 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
31623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
46606-556 VENT, PODVENT, POD
-
50641-897 OUTLET, ACCESSORY (12V)OUTLET, ACCESSORY (12V)
-
60609-910 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT, RETAINING...NUT, RETAINING
-
80430-042 ...KEY, IGNITION - Y SERIES (LEFT BANK)...KEY, IGNITION - Y SERIES (LEFT BANK)
-
80430-043 ...KEY, IGNITION - Z SERIES (RIGHT BANK)...KEY, IGNITION - Z SERIES (RIGHT BANK)
-
90430-054 ...COVER, KEY...COVER, KEY
-
100620-395 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
116606-418 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
120423-493 NUT W/WASHERNUT W/WASHER
-
138410-616 SCREW, CAPSCREW, CAP
-
146606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
146606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
158053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
168427-602 NUT, LOCKNUT, LOCK
-
170423-355 SCREW, SHOULDERSCREW, SHOULDER
-
181623-764 NUT, EXPANSIONNUT, EXPANSION
-
196606-377 WINDSHIELD - MID - SMOKEWINDSHIELD - MID - SMOKE
-
208477-516 SCREW, MACHINESCREW, MACHINE
