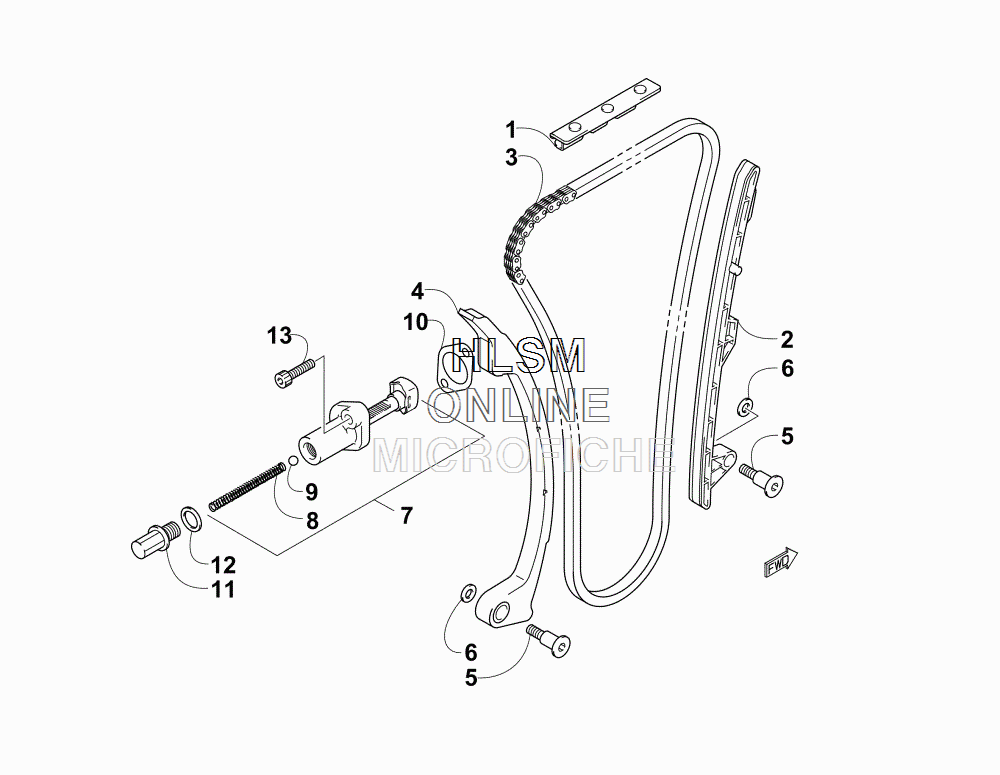

CAM CHAIN ASSEMBLY для Arctic Cat ZR 5000 LXR 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13007-141 GUIDE, CAM CHAIN - NO. 2GUIDE, CAM CHAIN - NO. 2
-
23007-140 GUIDE,CAM CHAIN NO.1GUIDE,CAM CHAIN NO.1
-
33007-139 CHAIN, DRIVECHAIN, DRIVE
-
43007-142 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
53007-143 SCREW, SHOULDERSCREW, SHOULDER
-
63007-418 WASHERWASHER
-
73007-144 ADJUSTER, TENSIONER - ASSEMBLY (INC. 8-9)ADJUSTER, TENSIONER - ASSEMBLY (INC. 8-9)
-
83007-145 ...SPRING...SPRING
-
93007-146 ...BALL...BALL
-
103007-147 GASKETGASKET
-
113007-148 BOLT, ADJUSTERBOLT, ADJUSTER
-
123530-047 GASKETGASKET
-
133007-509 SCREW, CAPSCREW, CAP
