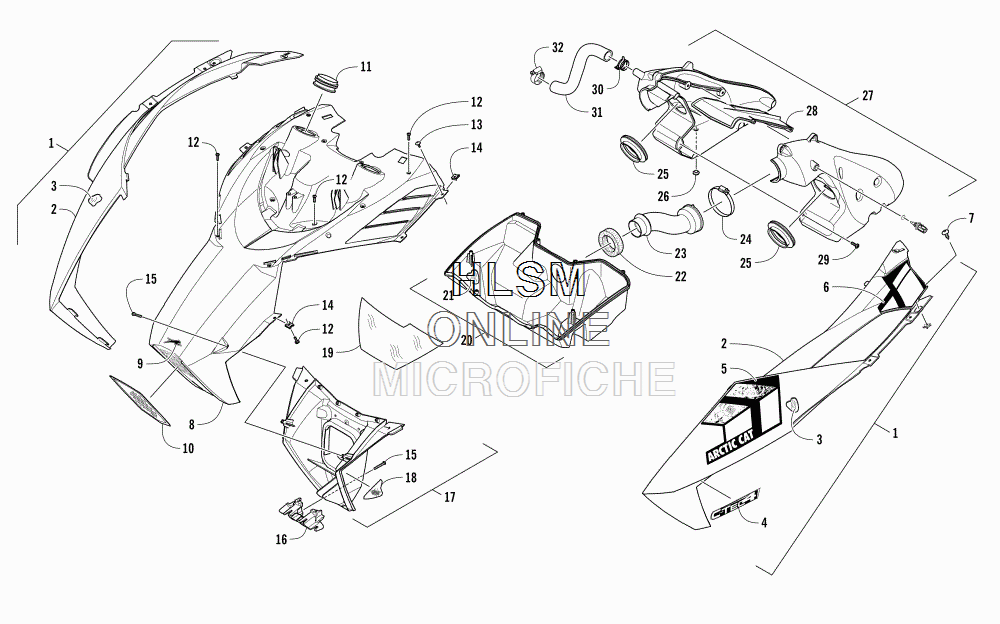

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 5000 LXR 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-098 HOOD - W/DECALS - RIGHT - BLACK (INC. 2-6)HOOD - W/DECALS - RIGHT - BLACK (INC. 2-6)
-
15718-099 HOOD - W/DECALS - LEFT - BLACK (INC. 2-6)HOOD - W/DECALS - LEFT - BLACK (INC. 2-6)
-
23718-486 ...HOOD W/FOIL - RIGHT - BLACK (INC. 3)...HOOD W/FOIL - RIGHT - BLACK (INC. 3)
-
23718-313 ...HOOD W/FOIL - LEFT - BLACK (INC. 3)...HOOD W/FOIL - LEFT - BLACK (INC. 3)
-
36606-420 ......FOIL, PROTECTIVE - RIGHT......FOIL, PROTECTIVE - RIGHT
-
36606-415 ......FOIL, PROTECTIVE - LEFT......FOIL, PROTECTIVE - LEFT
-
40621-993 ...DECAL, HOOD - "C-TEC4"...DECAL, HOOD - "C-TEC4"
-
53621-260 ...DECAL, HOOD - FRONT - RIGHT...DECAL, HOOD - FRONT - RIGHT
-
53621-261 ...DECAL, HOOD - FRONT - LEFT...DECAL, HOOD - FRONT - LEFT
-
63631-258 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
63621-259 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
86606-383 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
94411-479 DECAL, AIRCATDECAL, AIRCAT
-
100608-696 SCREEN, VENTSCREEN, VENT
-
116606-386 SEALSEAL
-
121623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141623-939 NUT, UNUT, U
-
151623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
166606-822 RETAINER, PLENUMRETAINER, PLENUM
-
175706-992 PLENUM, INTAKE - LOWER FRONT (INC. 18)PLENUM, INTAKE - LOWER FRONT (INC. 18)
-
180621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
196606-421 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
205706-372 PLENUM, INTAKE - LOWER REAR (INC. 21)PLENUM, INTAKE - LOWER REAR (INC. 21)
-
216606-419 ...FOIL, PROTECTIVE - LOWER...FOIL, PROTECTIVE - LOWER
-
220617-644 SEALSEAL
-
232670-164 DUCT, INTAKEDUCT, INTAKE
-
240423-018 CLAMP, HOSECLAMP, HOSE
-
252670-161 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
260406-877 BUMPERBUMPER
-
272670-160 SILENCER, AIR - ASSEMBLY (INC. 28-29)SILENCER, AIR - ASSEMBLY (INC. 28-29)
-
282670-183 ...BAFFLE, AIR SILENCER...BAFFLE, AIR SILENCER
-
291623-251 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
301623-229 CLAMP, HOSECLAMP, HOSE
-
310610-852 HOSE, BREATHERHOSE, BREATHER
-
321623-291 CLAMP, HOSECLAMP, HOSE
