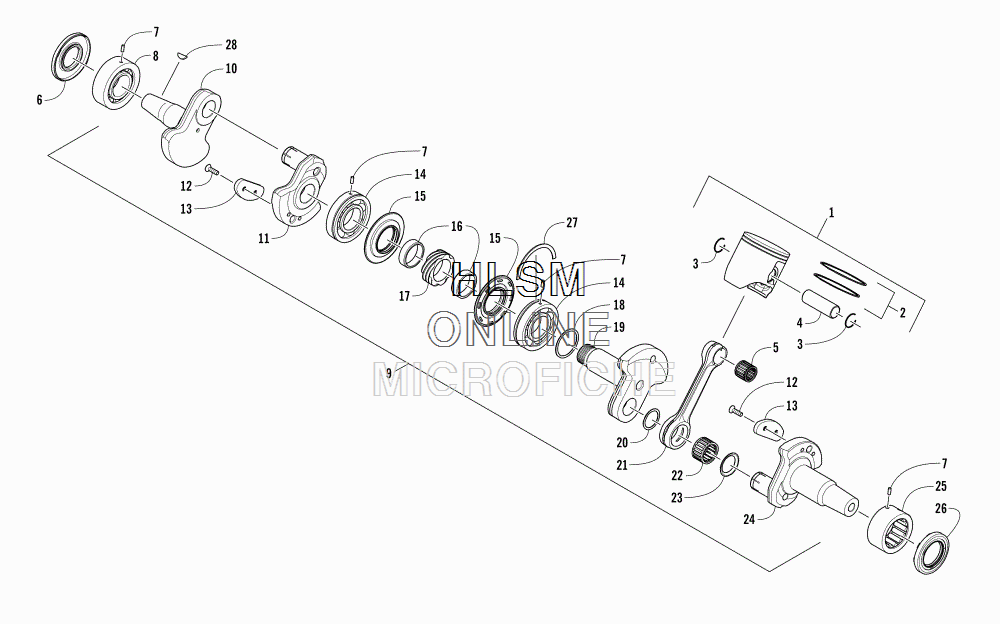

PISTON AND CRANKSHAFT для Arctic Cat ZR 6000 EL TIGRE ES 137 BLACK EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
10905-141 PISTON SET (INC. 2-4)PISTON SET (INC. 2-4)
-
20905-158 ...RING SET, PISTON...RING SET, PISTON
-
30931-010 CIRCLIP, PISTONCIRCLIP, PISTON
-
40905-155 PIN, PISTONPIN, PISTON
-
50932-010 BEARINGBEARING
-
60930-039 SEAL, OILSEAL, OIL
-
70929-004 PIN, ALIGNMENTPIN, ALIGNMENT
-
80932-004 BEARINGBEARING
-
91905-001 CRANKSHAFT ASSEMBLY (INC. 10-24)CRANKSHAFT ASSEMBLY (INC. 10-24)
-
100905-002 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
110905-004 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
120905-045 ...SCREW, MACHINE...SCREW, MACHINE
-
130905-040 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
140932-001 ...BEARING...BEARING
-
150930-028 ...SEAL, OIL...SEAL, OIL
-
160905-047 ...SPACER...SPACER
-
170905-041 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
180905-044 ...SHIM, 40 X 46 X 1 MM...SHIM, 40 X 46 X 1 MM
-
190905-003 ...CRANKSHAFT - CENTER...CRANKSHAFT - CENTER
-
200905-017 ...SHIM, 27 X 33 X 1 MM...SHIM, 27 X 33 X 1 MM
-
210905-006 ...CONNECTING ROD...CONNECTING ROD
-
220932-008 ...BEARING...BEARING
-
230905-016 ...WASHER...WASHER
-
240905-005 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
250932-009 BEARINGBEARING
-
260930-051 SEAL, OIL - PTO-SIDE (40 X 64 X 8)SEAL, OIL - PTO-SIDE (40 X 64 X 8)
-
270905-052 C-RINGC-RING
-
280829-006 KEYKEY
