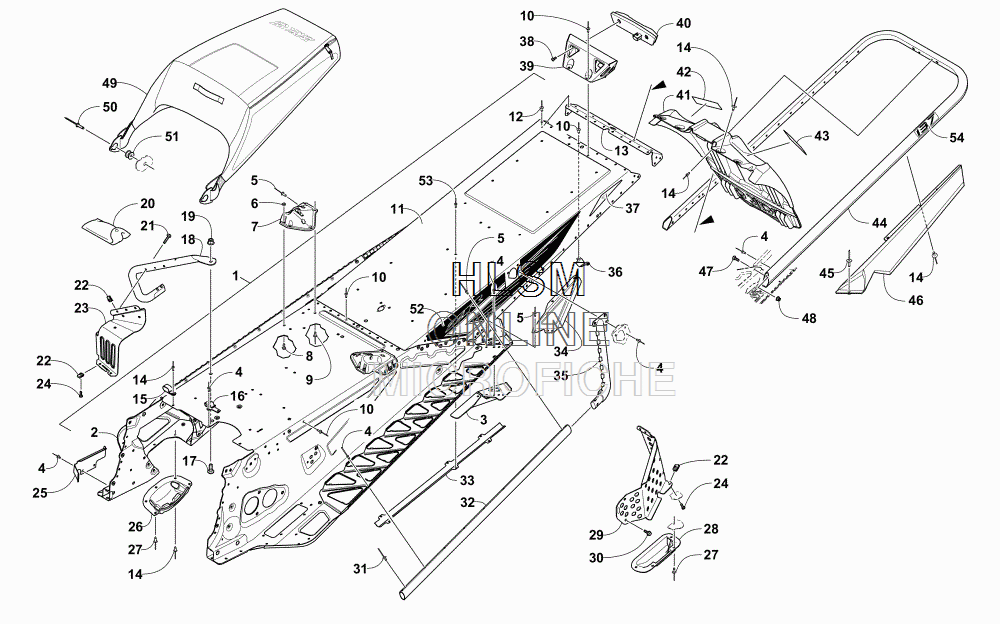

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 EL TIGRE ES 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-1707-986 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-239 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-238 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-244 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-245 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET...RIVET
-
111707-838 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-682 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
148061-706 RIVETRIVET
-
151623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
160645-709 CLIP, ROUTINGCLIP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
181707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
198427-802 NUTNUT
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
231707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
250608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
308408-613 SCREW, CAPSCREW, CAP
-
311623-130 RIVETRIVET
-
321707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
330630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
341707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
351707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
351707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
388470-512 SCREW, MACHINESCREW, MACHINE
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
442707-584 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
458060-710 RIVETRIVET
-
466606-870 FLARE, TUNNEL - RIGHTFLARE, TUNNEL - RIGHT
-
466606-871 FLARE, TUNNEL - LEFTFLARE, TUNNEL - LEFT
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-600 SADDLEBAGSADDLEBAG
-
508060-630 RIVETRIVET
-
511623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
523621-518 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
523621-519 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
538060-688 RIVETRIVET
-
542621-302 DECAL, REAR BUMPERDECAL, REAR BUMPER
