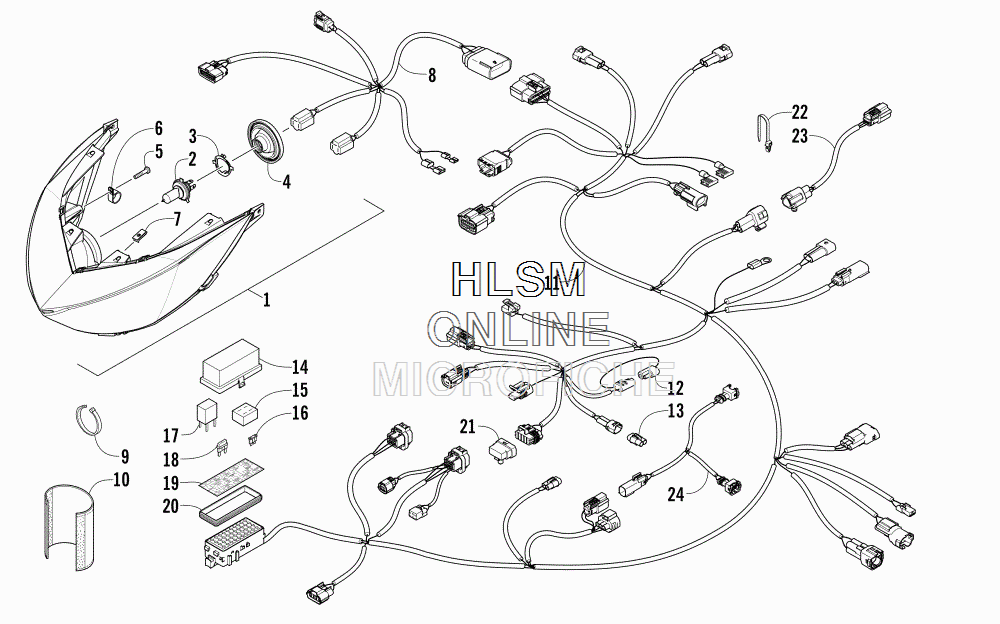

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 6000 LTD ES 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
10609-967 HEADLIGHT ASSEMBLY (INC. 2-4)HEADLIGHT ASSEMBLY (INC. 2-4)
-
20609-956 ...BULB...BULB
-
30409-097 ...RETAINER, SPRING...RETAINER, SPRING
-
40609-919 ...BOOT...BOOT
-
51623-915 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-675 CLAMPCLAMP
-
70423-031 NUT, SPEEDNUT, SPEED
-
81686-706 HARNESS, HOODHARNESS, HOOD
-
90123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
90123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
105706-618 WRAP, HARNESSWRAP, HARNESS
-
111686-742 HARNESS, MAIN (INC. 12-21)HARNESS, MAIN (INC. 12-21)
-
120486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
130630-325 ...PLUG...PLUG
-
140430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
150430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
160430-068 ...FUSE - 7.5 AMP...FUSE - 7.5 AMP
-
160430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
160430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
160430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
170430-033 ...RELAY (5-PIN) 30 AMP...RELAY (5-PIN) 30 AMP
-
180430-034 ...DIODE...DIODE
-
191621-708 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
200430-086 ...SEAL...SEAL
-
210430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
220623-677 TIE, CABLE - PUSH MOUNTTIE, CABLE - PUSH MOUNT
-
231686-692 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
241686-663 HARNESS, EXTENSION - INJECTORHARNESS, EXTENSION - INJECTOR
