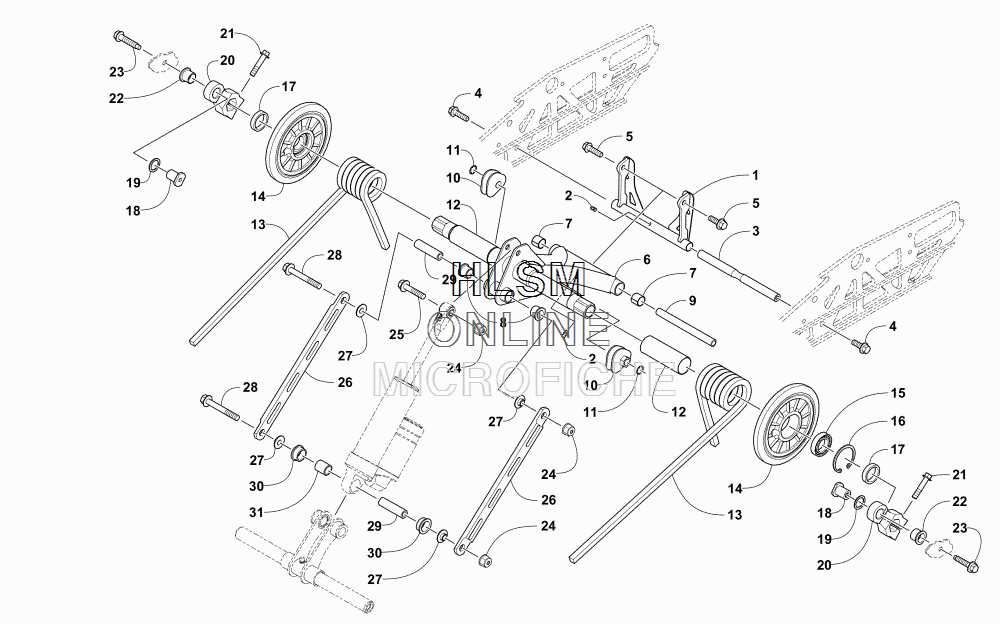

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZR 6000 R XC GREEN - 2017 года выпуска
-
№АртикулНазвание
-
12704-320 ARM, REAR - BLACK (INC. ONE NO. 2)ARM, REAR - BLACK (INC. ONE NO. 2)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-965 AXLEAXLE
-
48413-031 SCREW, CAPSCREW, CAP
-
58408-041 SCREW, CAPSCREW, CAP
-
62704-533 ARM, IDLER - BLACK (INC. ONE NO. 2 AND 7- 8)ARM, IDLER - BLACK (INC. ONE NO. 2 AND 7- 8)
-
72603-481 ...BEARING...BEARING
-
80104-386 ...BUSHING...BUSHING
-
93604-638 AXLEAXLE
-
101604-204 BLOCK, SPRING ADJUSTER - RIGHT - BLACKBLOCK, SPRING ADJUSTER - RIGHT - BLACK
-
101604-205 BLOCK, SPRING ADJUSTER - LEFT - BLACKBLOCK, SPRING ADJUSTER - LEFT - BLACK
-
110623-138 RING, RETAININGRING, RETAINING
-
123604-819 SLEEVE, SPRINGSLEEVE, SPRING
-
132704-382 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
132704-383 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
143604-616 WHEEL, IDLER (INC. 15-16)WHEEL, IDLER (INC. 15-16)
-
153604-257 ...BEARING...BEARING
-
163604-256 ...RING, RETAINING...RING, RETAINING
-
173604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
183604-979 AXLEAXLE
-
193604-930 WASHERWASHER
-
202704-944 PIVOT - IDLER ARM (INC. 22)PIVOT - IDLER ARM (INC. 22)
-
218408-051 SCREW, CAPSCREW, CAP
-
223604-713 BUSHING, FLAREDBUSHING, FLARED
-
232623-002 SCREW, CAPSCREW, CAP
-
242623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
258408-045 SCREW, CAPSCREW, CAP
-
262704-230 LINK, SHOCK (INC. 27)LINK, SHOCK (INC. 27)
-
273604-266 ...INSERT, RAIL...INSERT, RAIL
-
288408-090 SCREW, CAPSCREW, CAP
-
293604-694 AXLEAXLE
-
303604-804 BUSHINGBUSHING
-
313604-802 SLEEVESLEEVE
