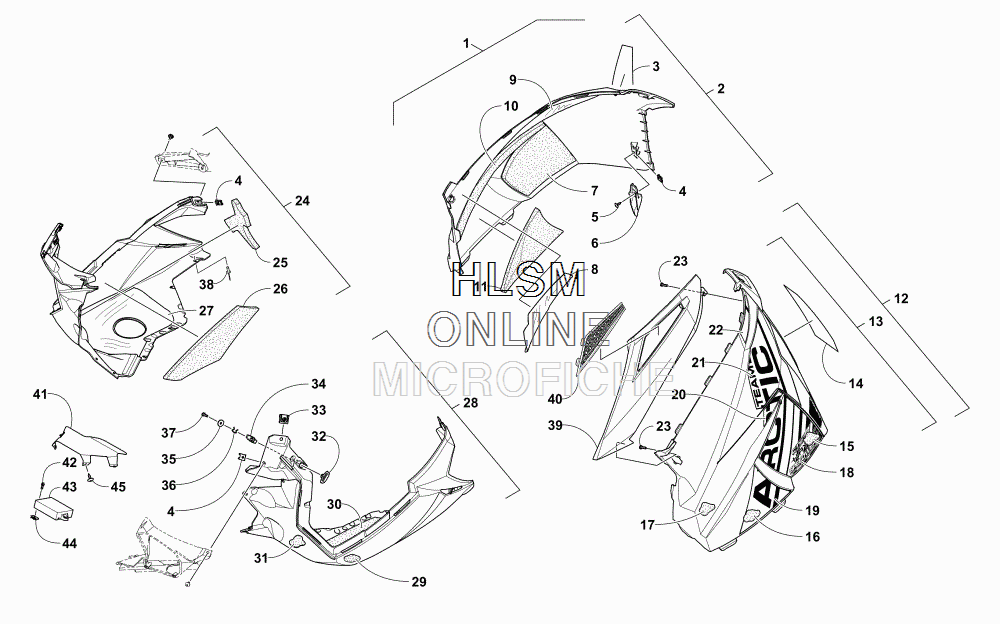

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 6000 R XC GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-480 PANEL, SIDE W/DECALS - RIGHT - GRAY (INC. 2-11 AND 18-22)PANEL, SIDE W/DECALS - RIGHT - GRAY (INC. 2-11 AND 18-22)
-
25718-476 ...PANEL, SIDE W/O DECALS - RIGHT - GRAY (INC. 3-11)...PANEL, SIDE W/O DECALS - RIGHT - GRAY (INC. 3-11)
-
33621-487 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
41623-939 ......NUT, U......NUT, U
-
52623-166 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
67606-292 ......HOOK, MOUNTING - RIGHT......HOOK, MOUNTING - RIGHT
-
67606-293 ......HOOK, MOUNTING - LEFT......HOOK, MOUNTING - LEFT
-
70617-756 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
87606-552 ......FOIL, PROTECTIVE - REAR - RIGHT......FOIL, PROTECTIVE - REAR - RIGHT
-
97606-598 ......FOIL, PROTECTIVE - UPPER - RIGHT......FOIL, PROTECTIVE - UPPER - RIGHT
-
100617-758 ......FOAM, SIDE PANEL - MID - RIGHT......FOAM, SIDE PANEL - MID - RIGHT
-
110617-754 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
125718-481 PANEL, SIDE W/DECALS - LEFT - GRAY (INC. 4-6 AND 14-22)PANEL, SIDE W/DECALS - LEFT - GRAY (INC. 4-6 AND 14-22)
-
135718-477 PANEL, SIDE W/O DECALS - LEFT - GRAY (INC. 4-6 AND 14-17)PANEL, SIDE W/O DECALS - LEFT - GRAY (INC. 4-6 AND 14-17)
-
143621-486 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
150617-757 ...FOAM, SIDE PANEL - LOWER REAR - LEFT...FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-755 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT...FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
170617-759 ...FOAM, SIDE PANEL - MIDDLE - LEFT...FOAM, SIDE PANEL - MIDDLE - LEFT
-
183621-974 DECAL, SIDE PANEL - LOWER REAR - RIGHTDECAL, SIDE PANEL - LOWER REAR - RIGHT
-
183621-975 DECAL, SIDE PANEL - LOWER REAR - LEFTDECAL, SIDE PANEL - LOWER REAR - LEFT
-
193621-976 DECAL, SIDE PANEL - LOWER FRONT - RIGHTDECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
193621-977 DECAL, SIDE PANEL - LOWER FRONT - LEFTDECAL, SIDE PANEL - LOWER FRONT - LEFT
-
203621-972 DECAL, SIDE PANEL - MID FRONT - RIGHTDECAL, SIDE PANEL - MID FRONT - RIGHT
-
203621-973 DECAL, SIDE PANEL - MID FRONT - LEFTDECAL, SIDE PANEL - MID FRONT - LEFT
-
213621-970 DECAL, SIDE PANEL - UPPER REAR - RIGHTDECAL, SIDE PANEL - UPPER REAR - RIGHT
-
213621-971 DECAL, SIDE PANEL - UPPER REAR - LEFTDECAL, SIDE PANEL - UPPER REAR - LEFT
-
223621-968 DECAL, SIDE PANEL - UPPER FRONT - RIGHTDECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
223621-969 DECAL, SIDE PANEL - UPPER FRONT - LEFTDECAL, SIDE PANEL - UPPER FRONT - LEFT
-
232623-211 SCREWSCREW
-
245718-484 PLATE, SKID W/FOAM - RIGHT - GRAY (INC. TWO NO. 4, 25-27, AND 32-37)PLATE, SKID W/FOAM - RIGHT - GRAY (INC. TWO NO. 4, 25-27, AND 32-37)
-
250617-776 ...FOAM, SKID PLATE - FRONT - RIGHT...FOAM, SKID PLATE - FRONT - RIGHT
-
260617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT...FOAM, SKID PLATE - MIDDLE - RIGHT
-
277606-290 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
285718-483 PLATE, SKID W/FOAM - LEFT - GRAY (INC. TWO NO. 4 AND 29-37)PLATE, SKID W/FOAM - LEFT - GRAY (INC. TWO NO. 4 AND 29-37)
-
290617-765 ...FOAM, SKID PLATE - LOWER - LEFT...FOAM, SKID PLATE - LOWER - LEFT
-
300617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT...FOAM, SKID PLATE - MIDDLE - LEFT
-
310617-761 ...FOAM, SKID PLATE - FRONT - LEFT...FOAM, SKID PLATE - FRONT - LEFT
-
327606-265 ...KNOB, HOLDDOWN...KNOB, HOLDDOWN
-
332623-005 ...CLIP, RETAINING...CLIP, RETAINING
-
347606-296 ...PLATE, BACKING...PLATE, BACKING
-
352623-171 ...WASHER, FLAT...WASHER, FLAT
-
362623-155 ...CLIP, RETAINING...CLIP, RETAINING
-
371623-933 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
388061-708 RIVETRIVET
-
397606-448 PANEL, UPPER SIDE - RIGHT - GRAYPANEL, UPPER SIDE - RIGHT - GRAY
-
397606-449 PANEL, UPPER SIDE - LEFT - GRAYPANEL, UPPER SIDE - LEFT - GRAY
-
407606-272 VENT, UPPER - SIDE PANEL - RIGHTVENT, UPPER - SIDE PANEL - RIGHT
-
407606-273 VENT, UPPER - SIDE PANEL - LEFTVENT, UPPER - SIDE PANEL - LEFT
-
416606-940 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
428408-620 SCREW, CAPSCREW, CAP
-
430730-255 ECMECM
-
440423-031 NUT, SPEEDNUT, SPEED
-
452623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
