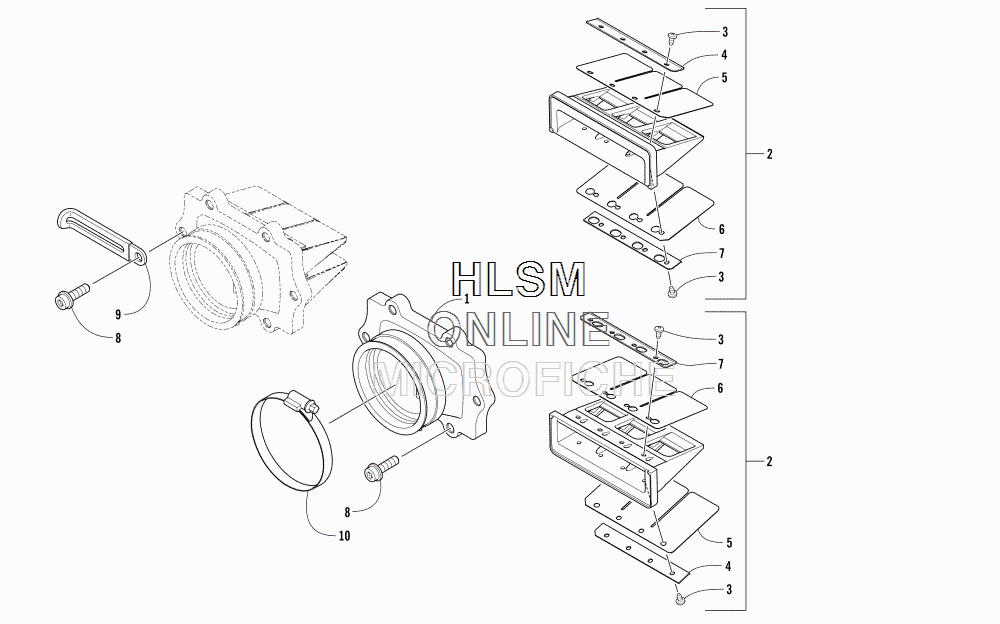

REED VALVE ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES 129 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10907-003 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
20907-001 VALVE, REED - ASSEMBLY (INC. 3-7)VALVE, REED - ASSEMBLY (INC. 3-7)
-
30923-045 ...SCREW, MACHINE...SCREW, MACHINE
-
40907-007 ...PLATE, BACKING - OUTER...PLATE, BACKING - OUTER
-
50907-005 ...VALVE, REED - OUTER...VALVE, REED - OUTER
-
60907-006 ...VALVE, REED - INNER...VALVE, REED - INNER
-
70907-008 ...PLATE, BACKING - INNER...PLATE, BACKING - INNER
-
80923-025 SCREW, CAPSCREW, CAP
-
91623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
100423-019 CLAMPCLAMP
