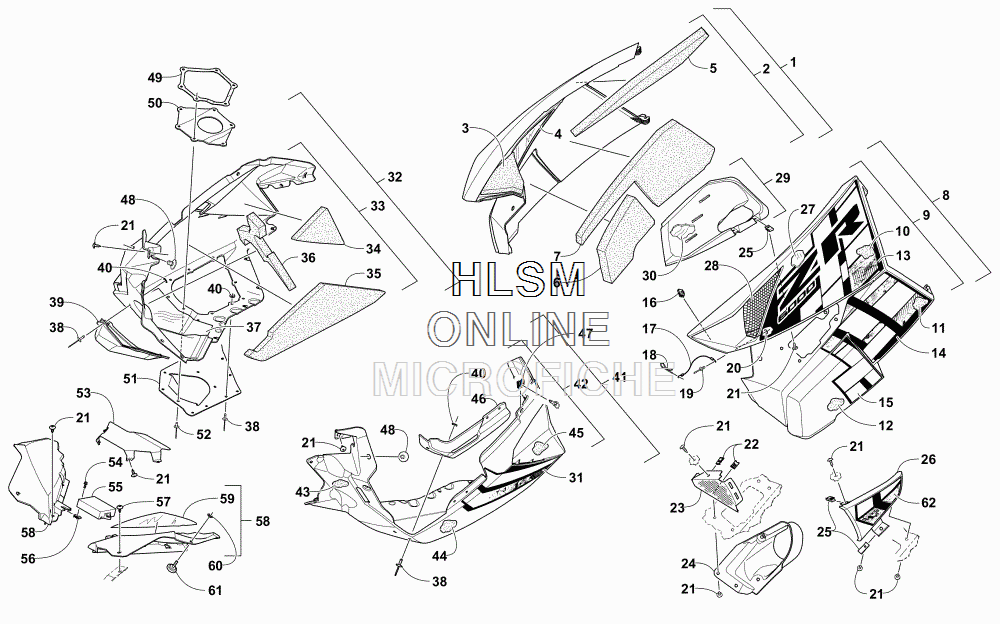

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES 137 GREEN INTERNATIONAL - 2017 года выпуска

№

Артикул

Название
1

5718-130 PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, 17-20 AND 62)

PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, 17-20 AND 62)

49 080 ₽
2

3718-180 ...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 17-20)

...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 17-20)

39 930 ₽
3

0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT

......FOAM, SIDE PANEL - UPPER FRONT - RIGHT

650 ₽
4

6606-414 ......FOIL, PROTECTIVE - MIDDLE PANEL - REAR RIGHT

......FOIL, PROTECTIVE - MIDDLE PANEL - REAR RIGHT

290 ₽
5

0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT

......FOAM, SIDE PANEL - UPPER REAR - RIGHT

5 400 ₽
6

0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

3 320 ₽
7

0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT

......FOAM, SIDE PANEL - LOWER REAR - RIGHT

5 820 ₽
8

5718-131 PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)

PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)

49 080 ₽
9

4718-553 ...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 16-20)

...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 16-20)

39 930 ₽
10

0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT

......FOAM, SIDE PANEL - UPPER REAR - LEFT

2 490 ₽
11

0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT

......FOAM, SIDE PANEL - LOWER REAR - LEFT

1 870 ₽
12

0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT

......FOAM, SIDE PANEL - LOWER FRONT - LEFT

860 ₽
13

3621-352 ...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK - "ZR 6000"

...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK - "ZR 6000"

6 860 ₽
13

3621-353 ...DECAL, SIDE PANEL - UPPER - LEFT - BLACK - "ZR 6000"

...DECAL, SIDE PANEL - UPPER - LEFT - BLACK - "ZR 6000"

6 860 ₽
14

3621-362 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK

...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK

4 780 ₽
14

3621-363 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK

...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK

4 780 ₽
15

3621-360 ...DECAL, SIDE PANEL - FRONT - RIGHT

...DECAL, SIDE PANEL - FRONT - RIGHT

2 280 ₽
15

3621-361 ...DECAL, SIDE PANEL - FRONT - LEFT

...DECAL, SIDE PANEL - FRONT - LEFT

2 280 ₽
16

1623-637 ...CLIP, U-NUT

...CLIP, U-NUT

380 ₽
17

0607-447 ...CABLE

...CABLE

810 ₽
18

0605-283 ...CLIP, HAIRPIN

...CLIP, HAIRPIN

190 ₽
19

8060-486 ...RIVET

...RIVET

60 ₽
20

8050-127 ...WASHER

...WASHER

210 ₽
21

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
22

1623-052 CLIP, U-NUT

CLIP, U-NUT

150 ₽
23

6606-925 SCREEN, INTAKE

SCREEN, INTAKE

5 190 ₽
24

2602-794 DUCT, INTAKE - INNER

DUCT, INTAKE - INNER

4 150 ₽
25

1623-030 CLIP, U-NUT

CLIP, U-NUT

150 ₽
26

2602-793 DUCT, INTAKE - OUTER - BLACK

DUCT, INTAKE - OUTER - BLACK

2 910 ₽
27

0619-206 FOIL, PROTECTIVE

FOIL, PROTECTIVE

34 730 ₽
28

6606-925 SCREEN, INTAKE

SCREEN, INTAKE

5 190 ₽
29

1702-369 DUCT, BELT COOLING (INC. 30)

DUCT, BELT COOLING (INC. 30)

5 820 ₽
30

6606-694 ...FOIL, PROTECTIVE

...FOIL, PROTECTIVE

560 ₽
31

3621-364 DECAL, SKID PLATE - RIGHT

DECAL, SKID PLATE - RIGHT

3 320 ₽
31

3621-365 DECAL, SKID PLATE - LEFT

DECAL, SKID PLATE - LEFT

3 110 ₽
32

5718-140 PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 31 AND 33-40)

PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 31 AND 33-40)

29 950 ₽
33

4718-158 ...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 34-40)

...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 34-40)

28 700 ₽
34

0617-640 FOAM, SKID PLATE - UPPER REAR - RIGHT

FOAM, SKID PLATE - UPPER REAR - RIGHT

540 ₽
35

0617-638 FOAM, SKID PLATE - CENTER FRONT - RIGHT

FOAM, SKID PLATE - CENTER FRONT - RIGHT

6 440 ₽
36

0617-636 FOAM, SKID PLATE - UPPER FRONT - RIGHT

FOAM, SKID PLATE - UPPER FRONT - RIGHT

5 400 ₽
37

2612-970 FOIL, PROTECTIVE

FOIL, PROTECTIVE

1 450 ₽
38

8061-708 RIVET

RIVET

150 ₽
39

2612-754 DEFLECTOR, HEAT

DEFLECTOR, HEAT

4 360 ₽
40

0123-802 WASHER

WASHER

20 ₽
41

5718-137 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 31, 38, 40, AND 42-46)

PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 31, 38, 40, AND 42-46)

18 510 ₽
42

3718-789 ...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)

...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)

16 430 ₽
43

0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT

......FOAM, SKID PLATE - UPPER FRONT - LEFT

2 490 ₽
44

0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT

......FOAM, SKID PLATE - CENTER FRONT - LEFT

2 490 ₽
45

0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT

......FOAM, SKID PLATE - UPPER REAR - LEFT

610 ₽
46

6606-613 ......PANEL, REINFORCEMENT

......PANEL, REINFORCEMENT

1 870 ₽
47

2623-005 CLIP, RETAINING

CLIP, RETAINING

400 ₽
48

6606-592 PIN, RETAINING

PIN, RETAINING

540 ₽
49

2612-972 PLATE, EXHAUST OUTLET

PLATE, EXHAUST OUTLET

2 280 ₽
50

2612-971 SEAL, EXHAUST OUTLET

SEAL, EXHAUST OUTLET

5 610 ₽
51

1712-963 DEFLECTOR, EXHAUST OUTLET - BLACK

DEFLECTOR, EXHAUST OUTLET - BLACK

4 780 ₽
52

8061-710 RIVET

RIVET

170 ₽
53

6606-940 SHIELD, HEAT - ECM

SHIELD, HEAT - ECM

3 530 ₽
54

8408-620 SCREW, CAP

SCREW, CAP

110 ₽
55

0730-266 ECM

ECM

310 ₽
56

0423-031 NUT, SPEED

NUT, SPEED

150 ₽
57

0623-784 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

210 ₽
58

6606-342 FASCIA, FRONT - RIGHT - BLACK

FASCIA, FRONT - RIGHT - BLACK

2 910 ₽
58

3718-303 FASCIA, FRONT - LEFT - BLACK (INC. 59)

FASCIA, FRONT - LEFT - BLACK (INC. 59)

2 910 ₽
59

6606-405 ...FOIL, PROTECTIVE - FILLER PANEL - LEFT

...FOIL, PROTECTIVE - FILLER PANEL - LEFT

4 150 ₽
60

2623-001 NUT, PUSH

NUT, PUSH

60 ₽
61

1623-999 SCREW, THUMB

SCREW, THUMB

750 ₽
62

3621-358 DECAL, SIDE PANEL - MID - RIGHT

DECAL, SIDE PANEL - MID - RIGHT

690 ₽
62

3621-367 DECAL, SIDE PANEL - VENT - LEFT

DECAL, SIDE PANEL - VENT - LEFT

1 660 ₽
