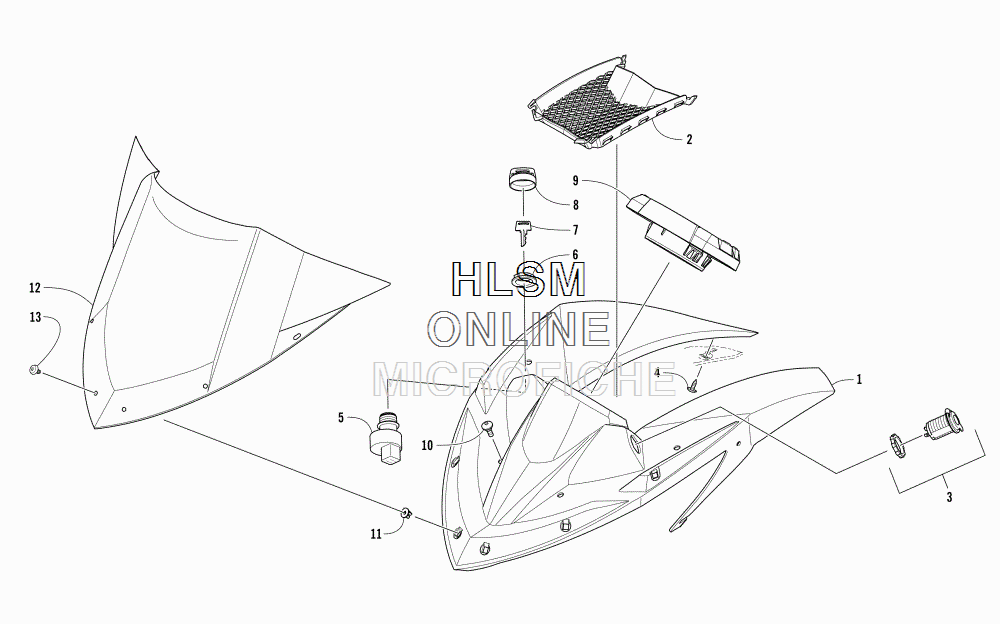

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 7000 EL TIGRE 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
16606-628 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
26606-556 VENT, PODVENT, POD
-
30641-897 OUTLET, ACCESSORY (12V)OUTLET, ACCESSORY (12V)
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50609-911 SWITCH, IGNITION (INC. 6-8)SWITCH, IGNITION (INC. 6-8)
-
60430-050 ...NUT, RETAINING...NUT, RETAINING
-
70430-042 ...KEY, IGNITION - Y SERIES (LEFT BLANK)...KEY, IGNITION - Y SERIES (LEFT BLANK)
-
70430-043 ...KEY, IGNITION - Z SERIES (RIGHT BLANK)...KEY, IGNITION - Z SERIES (RIGHT BLANK)
-
80430-054 ...COVER, KEY...COVER, KEY
-
90720-036 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
102623-042 SCREW, SHOULDERSCREW, SHOULDER
-
111623-025 INSERTINSERT
-
126606-865 WINDSHIELD - MID - BLACKWINDSHIELD - MID - BLACK
-
132623-146 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
