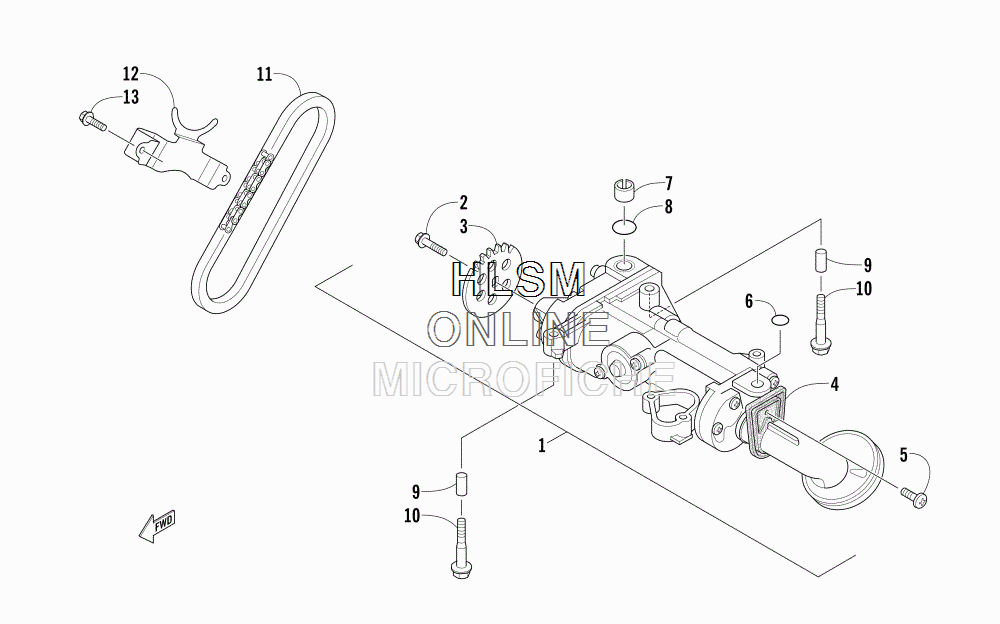

OIL PUMP ASSEMBLY для Arctic Cat ZR 7000 LTD 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13020-281 PUMP, OIL - ASSEMBLY (INC. 2-5)PUMP, OIL - ASSEMBLY (INC. 2-5)
-
23020-282 ...SCREW, CAP...SCREW, CAP
-
33020-283 ...SPROCKET...SPROCKET
-
43020-284 ...ISOLATOR, OIL STRAINER...ISOLATOR, OIL STRAINER
-
63020-285 O-RINGO-RING
-
73020-286 INSERTINSERT
-
83020-287 O-RINGO-RING
-
93020-288 PIN, DOWELPIN, DOWEL
-
103020-289 SCREW, CAPSCREW, CAP
-
113020-290 CHAINCHAIN
-
123020-291 BRACKET, RETAINER - CHAINBRACKET, RETAINER - CHAIN
-
133020-292 SCREW, CAPSCREW, CAP
