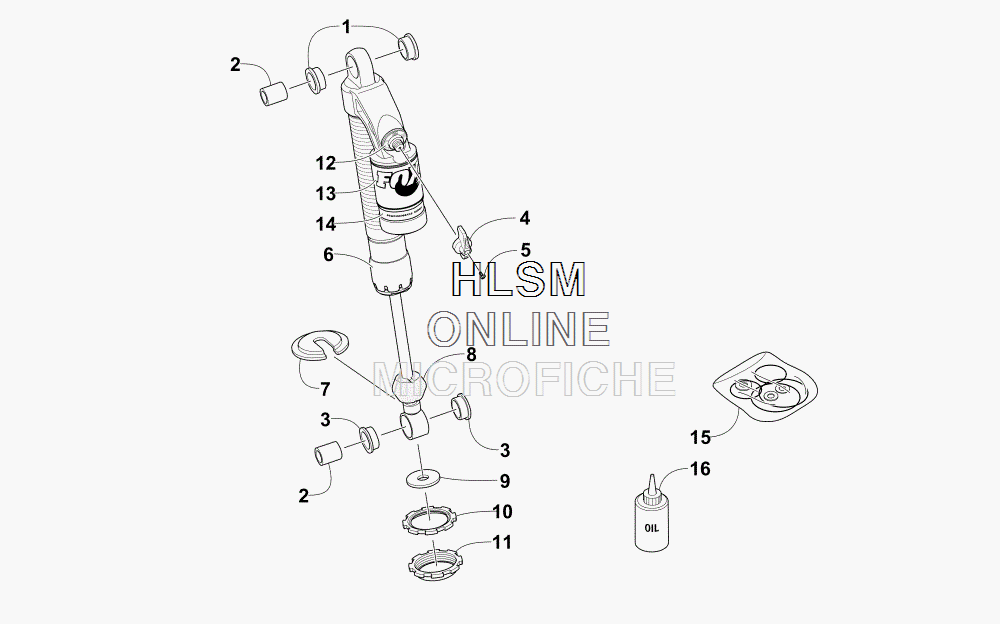

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 7000 LTD 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
-3703-476 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
33603-283 BUSHINGBUSHING
-
43603-520 KNOB, DAMPING ADJUSTER - REBOUNDKNOB, DAMPING ADJUSTER - REBOUND
-
53603-377 SCREW, MACHINESCREW, MACHINE
-
64604-016 GUIDE, SPRINGGUIDE, SPRING
-
70403-490 RETAINER, SPRINGRETAINER, SPRING
-
83603-024 BUMPER, SHAFTBUMPER, SHAFT
-
93603-028 WASHERWASHER
-
103603-026 PRELOAD RINGPRELOAD RING
-
113603-027 PRELOAD RING, BACK-UPPRELOAD RING, BACK-UP
-
123603-523 DECAL, BASE VALUEDECAL, BASE VALUE
-
133603-521 DECAL, RESERVOIRDECAL, RESERVOIR
-
143603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
153603-522 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
165639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
