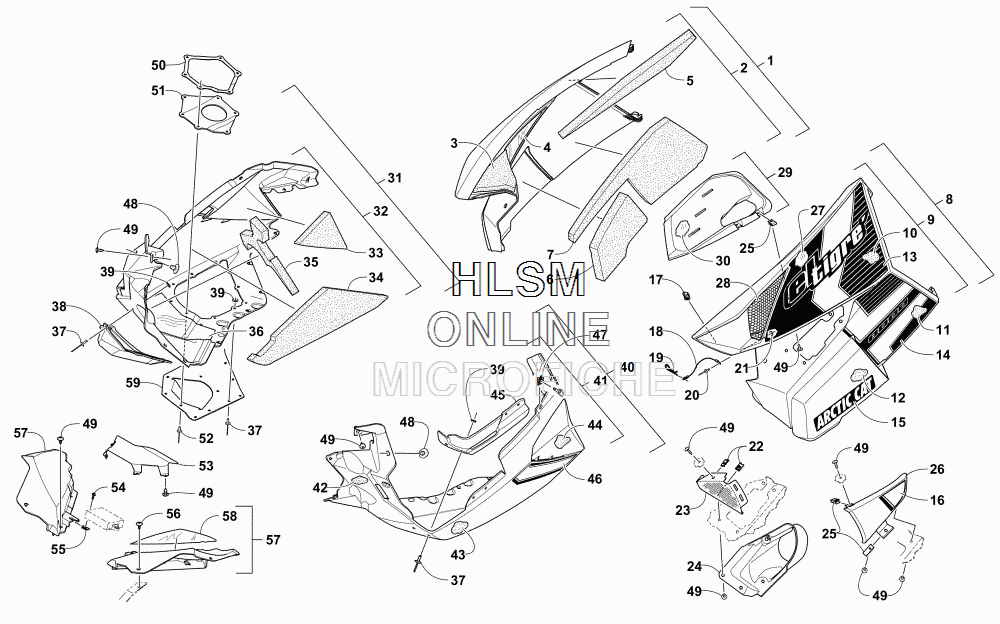

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 8000 EL TIGRE ES 137 BLACK - 2017 года выпуска

№

Артикул

Название
1

5718-188 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7, 13-16, AND 18-21)

PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7, 13-16, AND 18-21)

49 710 ₽
2

3718-180 ...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 18-21)

...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 18-21)

39 930 ₽
3

0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT

......FOAM, SIDE PANEL - UPPER FRONT - RIGHT

650 ₽
4

6606-414 ......FOIL, PROTECTIVE - MIDDLE PANEL - RIGHT

......FOIL, PROTECTIVE - MIDDLE PANEL - RIGHT

290 ₽
5

0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT

......FOAM, SIDE PANEL - UPPER REAR - RIGHT

5 400 ₽
6

0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

3 320 ₽
7

0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT

......FOAM, SIDE PANEL - LOWER REAR - RIGHT

5 820 ₽
8

5718-189 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-21)

PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-21)

49 710 ₽
9

4718-553 ...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 17-21)

...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 17-21)

39 930 ₽
10

0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT

......FOAM, SIDE PANEL - UPPER REAR - LEFT

2 490 ₽
11

0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT

......FOAM, SIDE PANEL - LOWER REAR - LEFT

1 870 ₽
12

0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT

......FOAM, SIDE PANEL - LOWER FRONT - LEFT

860 ₽
13

3621-526 ...DECAL, SIDE PANEL - UPPER - RIGHT

...DECAL, SIDE PANEL - UPPER - RIGHT

5 820 ₽
13

3621-527 ...DECAL, SIDE PANEL - UPPER - LEFT

...DECAL, SIDE PANEL - UPPER - LEFT

5 820 ₽
14

3621-524 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT

...DECAL, SIDE PANEL - LOWER REAR - RIGHT

4 780 ₽
14

3621-525 ...DECAL, SIDE PANEL - LOWER REAR - LEFT

...DECAL, SIDE PANEL - LOWER REAR - LEFT

4 780 ₽
15

9611-517 ...DECAL, SIDE PANEL - FRONT

...DECAL, SIDE PANEL - FRONT

1 660 ₽
16

3621-530 ...DECAL, SIDE PANEL - MID - RIGHT

...DECAL, SIDE PANEL - MID - RIGHT

690 ₽
16

3621-533 ...DECAL, SIDE PANEL - VENT - LEFT

...DECAL, SIDE PANEL - VENT - LEFT

690 ₽
17

1623-637 ...CLIP, U-NUT

...CLIP, U-NUT

380 ₽
18

0607-447 ...CABLE

...CABLE

810 ₽
19

0605-283 ...CLIP, HAIRPIN

...CLIP, HAIRPIN

190 ₽
20

8060-486 ...RIVET

...RIVET

60 ₽
21

8050-127 ...WASHER

...WASHER

210 ₽
22

1623-052 CLIP, U-NUT

CLIP, U-NUT

150 ₽
23

6606-925 SCREEN, INTAKE

SCREEN, INTAKE

5 190 ₽
24

2602-794 DUCT, INTAKE - INNER

DUCT, INTAKE - INNER

4 150 ₽
25

1623-030 CLIP, U-NUT

CLIP, U-NUT

150 ₽
26

2602-793 DUCT, INTAKE - OUTER - BLACK

DUCT, INTAKE - OUTER - BLACK

2 910 ₽
27

0619-206 FOIL, PROTECTIVE (OPT.)

FOIL, PROTECTIVE (OPT.)

34 730 ₽
28

5706-531 SCREEN, INTAKE - (OPT.)

SCREEN, INTAKE - (OPT.)

3 110 ₽
29

1702-369 DUCT, BELT COOLING (INC. 30)

DUCT, BELT COOLING (INC. 30)

5 820 ₽
30

6606-694 FOIL, PROTECTIVE

FOIL, PROTECTIVE

560 ₽
31

5718-190 PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 32-39, AND 46)

PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 32-39, AND 46)

28 700 ₽
32

4718-158 ...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 33-37)

...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 33-37)

28 700 ₽
32

4718-158 ...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 33-39)

...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 33-39)

28 700 ₽
33

0617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT

......FOAM, SKID PLATE - UPPER REAR - RIGHT

540 ₽
34

0617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT

......FOAM, SKID PLATE - CENTER FRONT - RIGHT

6 440 ₽
35

0617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT

......FOAM, SKID PLATE - UPPER FRONT - RIGHT

5 400 ₽
36

2612-970 ......FOIL, PROTECTIVE - RIGHT

......FOIL, PROTECTIVE - RIGHT

1 450 ₽
37

8061-708 ......RIVET

......RIVET

150 ₽
38

2612-754 ......DEFLECTOR, HEAT

......DEFLECTOR, HEAT

4 360 ₽
39

0123-802 ......WASHER

......WASHER

20 ₽
40

5718-191 PLATE, SKID W/DECALS - LEFT - BLACK (INC. 37, 39, AND 41-46)

PLATE, SKID W/DECALS - LEFT - BLACK (INC. 37, 39, AND 41-46)

17 260 ₽
41

3718-789 ...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 37, 39, AND 42-45)

...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 37, 39, AND 42-45)

16 430 ₽
42

0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT

......FOAM, SKID PLATE - UPPER FRONT - LEFT

2 490 ₽
43

0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT

......FOAM, SKID PLATE - CENTER FRONT - LEFT

2 490 ₽
44

0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT

......FOAM, SKID PLATE - UPPER REAR - LEFT

610 ₽
45

6606-613 ......PANEL, REINFORCEMENT

......PANEL, REINFORCEMENT

1 870 ₽
46

3621-538 ...DECAL, SKID PLATE - RIGHT

...DECAL, SKID PLATE - RIGHT

1 660 ₽
46

3621-539 ...DECAL, SKID PLATE - LEFT

...DECAL, SKID PLATE - LEFT

1 660 ₽
47

2623-005 CLIP, RETAINING

CLIP, RETAINING

400 ₽
48

6606-592 PIN, RETAINING

PIN, RETAINING

540 ₽
49

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
50

2612-972 PLATE, EXHAUST OUTLET

PLATE, EXHAUST OUTLET

2 280 ₽
51

2612-971 SEAL, EXHAUST OUTLET

SEAL, EXHAUST OUTLET

5 610 ₽
52

8061-710 RIVET

RIVET

170 ₽
53

6606-295 SHIELD, HEAT - EMC

SHIELD, HEAT - EMC

3 740 ₽
54

8408-620 SCREW, CAP

SCREW, CAP

110 ₽
55

0423-031 NUT, SPEED

NUT, SPEED

150 ₽
56

0623-784 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

210 ₽
57

6606-342 FASCIA, FRONT - RIGHT - BLACK

FASCIA, FRONT - RIGHT - BLACK

2 910 ₽
57

3718-303 FASCIA, FRONT - LEFT - BLACK (INC. 58)

FASCIA, FRONT - LEFT - BLACK (INC. 58)

2 910 ₽
58

6606-405 ...FOIL, PROTECTIVE - FILLER PANEL - LEFT

...FOIL, PROTECTIVE - FILLER PANEL - LEFT

4 150 ₽
59

1712-963 DEFLECTOR, EXHAUST OUTLET - BLACK

DEFLECTOR, EXHAUST OUTLET - BLACK

4 780 ₽
