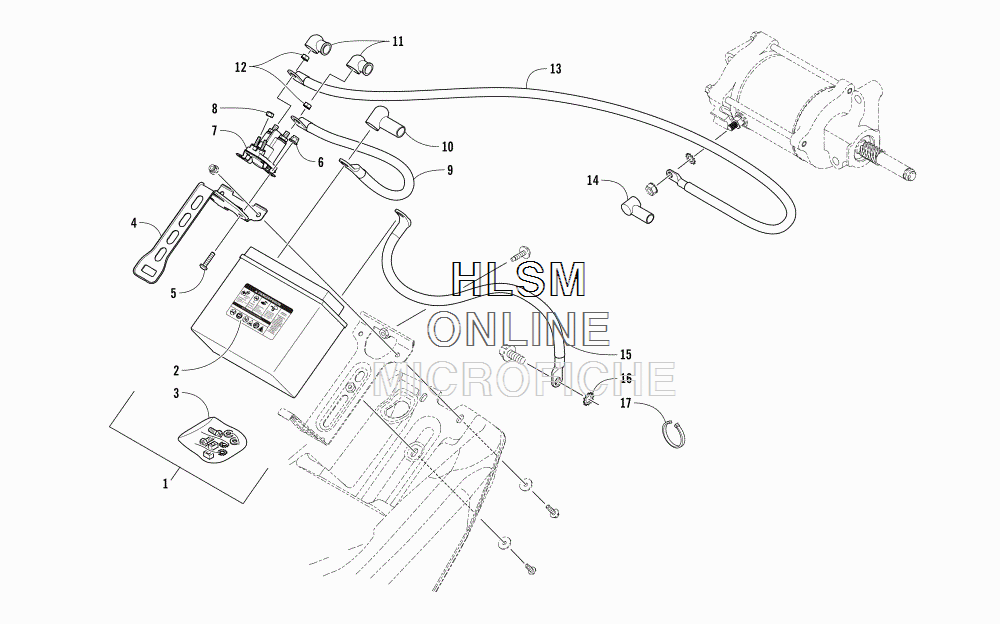

BATTERY ASSEMBLY для Arctic Cat ZR 8000 RR ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10745-406 BATTERY - W/ACID (INC. 2-3)BATTERY - W/ACID (INC. 2-3)
-
20645-430 DECAL, WARNINGDECAL, WARNING
-
30445-082 KIT, HARDWAREKIT, HARDWARE
-
40645-674 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
58468-616 SCREW, MACHINESCREW, MACHINE
-
68427-602 NUT, LOCKNUT, LOCK
-
70645-673 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
80624-524 NUT W/WASHERNUT W/WASHER
-
90645-649 CABLE, BATTERY/SOLENOID (INC. 10 AND ONE NO. 11)CABLE, BATTERY/SOLENOID (INC. 10 AND ONE NO. 11)
-
100645-662 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
110645-697 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
120623-877 NUT W/WASHERNUT W/WASHER
-
130645-650 CABLE, SOLENOID/STARTER (INC. 14 AND ONE NO. 11)CABLE, SOLENOID/STARTER (INC. 14 AND ONE NO. 11)
-
140645-581 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
150645-648 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
168053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
170123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
170123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
