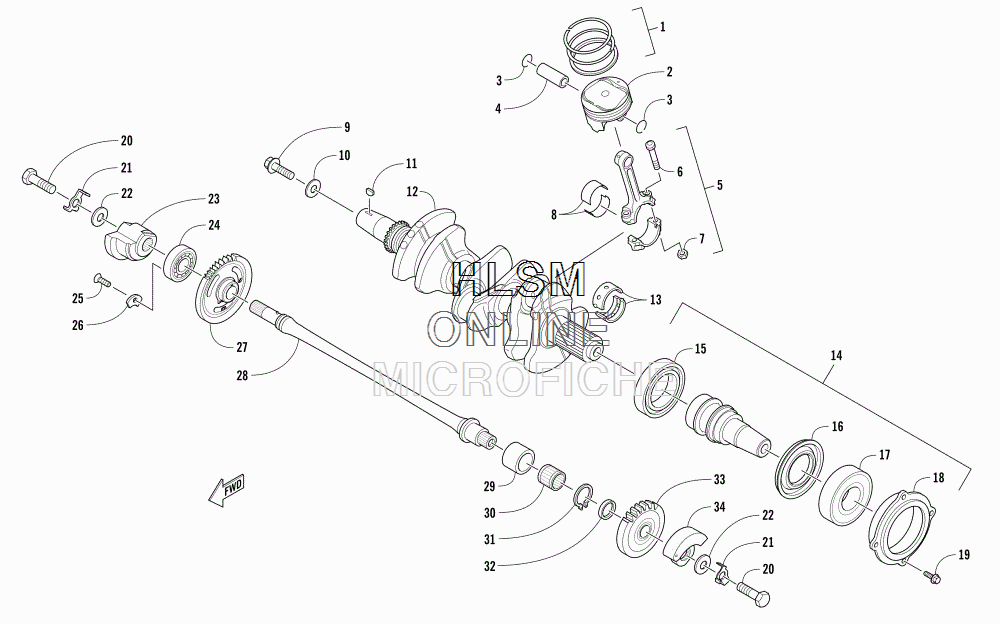

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat ZR 9000 LTD 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13020-573 RING SET, PISTONRING SET, PISTON
-
23020-572 PISTONPISTON
-
33020-575 CIRCLIPCIRCLIP
-
43020-574 PIN, PISTONPIN, PISTON
-
53020-571 ROD, CONNECTING - ASSEMBLY (INC. 6-7)ROD, CONNECTING - ASSEMBLY (INC. 6-7)
-
63020-195 ...SCREW, CAP...SCREW, CAP
-
73020-196 ...NUT...NUT
-
83020-197 BEARING, CONNECTING ROD - WHITEBEARING, CONNECTING ROD - WHITE
-
83020-198 BEARING, CONNECTING ROD - BLUEBEARING, CONNECTING ROD - BLUE
-
83020-199 BEARING, CONNECTING ROD - BLACKBEARING, CONNECTING ROD - BLACK
-
83020-200 BEARING, CONNECTING ROD - BROWNBEARING, CONNECTING ROD - BROWN
-
83020-201 BEARING, CONNECTING ROD - GREENBEARING, CONNECTING ROD - GREEN
-
83020-202 BEARING, CONNECTING ROD - YELLOWBEARING, CONNECTING ROD - YELLOW
-
93020-203 SCREW, CAPSCREW, CAP
-
103020-204 WASHERWASHER
-
113020-206 KEYKEY
-
123020-570 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
133020-208 BEARING, CRANKSHAFT - BLACKBEARING, CRANKSHAFT - BLACK
-
133020-209 BEARING, CRANKSHAFT - BROWNBEARING, CRANKSHAFT - BROWN
-
133020-210 BEARING, CRANKSHAFT - GREENBEARING, CRANKSHAFT - GREEN
-
133020-211 BEARING, CRANKSHAFT - YELLOWBEARING, CRANKSHAFT - YELLOW
-
133020-212 BEARING, CRANKSHAFT - PINKBEARING, CRANKSHAFT - PINK
-
133020-213 BEARING, CRANKSHAFT - REDBEARING, CRANKSHAFT - RED
-
133020-214 BEARING, CRANKSHAFT - WHITEBEARING, CRANKSHAFT - WHITE
-
143020-576 SHAFT, OUTPUT - ASSEMBLY (INC. 15-18)SHAFT, OUTPUT - ASSEMBLY (INC. 15-18)
-
153020-216 ...BEARING...BEARING
-
163020-217 ...SEAL...SEAL
-
173020-218 ...BEARING...BEARING
-
183020-430 ...HOUSING, BEARING...HOUSING, BEARING
-
193020-220 SCREW, CAPSCREW, CAP
-
203020-221 SCREW, CAPSCREW, CAP
-
213020-222 WASHER, TABWASHER, TAB
-
223020-223 WASHERWASHER
-
233020-433 COUNTERWEIGHTCOUNTERWEIGHT
-
243020-579 BEARINGBEARING
-
253020-226 SCREW, MACHINESCREW, MACHINE
-
263020-227 PLATE, RETAININGPLATE, RETAINING
-
273020-432 GEAR, BALANCERGEAR, BALANCER
-
283020-431 SHAFT, BALANCERSHAFT, BALANCER
-
293020-230 HOUSING, BEARINGHOUSING, BEARING
-
303020-231 BEARINGBEARING
-
313020-232 CIRCLIPCIRCLIP
-
323020-233 SPACERSPACER
-
333020-234 GEAR, DRIVENGEAR, DRIVEN
-
343020-235 COUNTERWEIGHTCOUNTERWEIGHT
