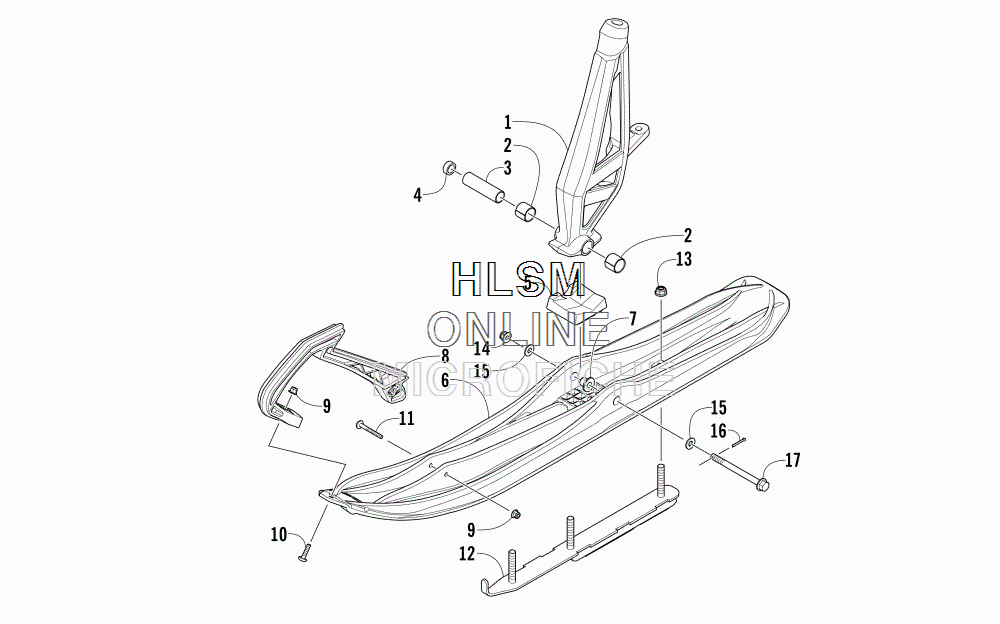

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 9000 LTD 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
13703-194 SPINDLE, STEERING - RIGHT - ORANGE (INC. 2)SPINDLE, STEERING - RIGHT - ORANGE (INC. 2)
-
13703-195 SPINDLE, STEERING - LEFT - ORANGE (INC. 2)SPINDLE, STEERING - LEFT - ORANGE (INC. 2)
-
20603-158 ...BEARING...BEARING
-
32603-813 AXLE, SPINDLEAXLE, SPINDLE
-
42603-208 SPACERSPACER
-
53603-237 DAMPER, SKI - RUBBERDAMPER, SKI - RUBBER
-
63603-234 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
72603-746 INSERTINSERT
-
82603-952 HANDLE, PLASTIC - ORANGEHANDLE, PLASTIC - ORANGE
-
98427-602 NUT, LOCKNUT, LOCK
-
108476-625 SCREW, CAPSCREW, CAP
-
118476-650 SCREW, MACHINESCREW, MACHINE
-
122603-988 WEARBAR - RIGHTWEARBAR - RIGHT
-
122603-989 WEARBAR - LEFTWEARBAR - LEFT
-
138047-486 NUT, LOCKNUT, LOCK
-
140423-744 NUT, LOCKNUT, LOCK
-
151623-801 WASHERWASHER
-
160123-458 PIN, COTTERPIN, COTTER
-
171623-781 SCREW, CAPSCREW, CAP
