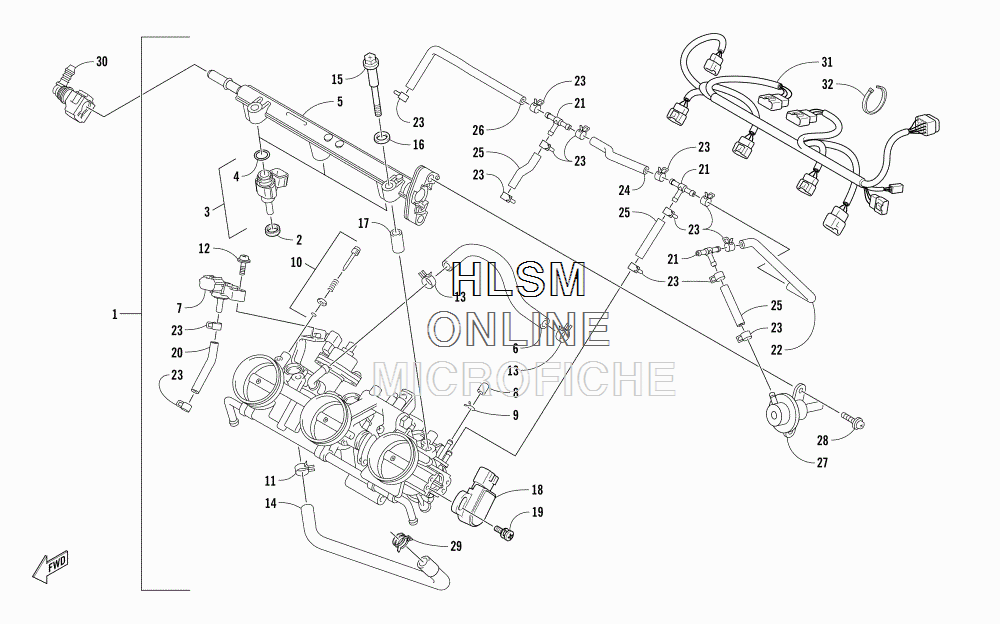

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 9000 RR 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13020-587 BODY, THROTTLE - ASSEMBLY (INC. 2-19)BODY, THROTTLE - ASSEMBLY (INC. 2-19)
-
23020-588 ...GROMMET...GROMMET
-
33020-589 ...INJECTOR (INC. 4)...INJECTOR (INC. 4)
-
43020-590 ......O-RING......O-RING
-
53020-591 ...RAIL, FUEL...RAIL, FUEL
-
63020-339 ...HOSE, ISC...HOSE, ISC
-
73020-398 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
83020-592 ...CAP...CAP
-
93020-593 ...CLAMP, HOSE...CLAMP, HOSE
-
103020-335 ...SCREW, ADJUSTMENT...SCREW, ADJUSTMENT
-
113020-594 ...CLAMP, HOSE...CLAMP, HOSE
-
123020-595 ...SCREW, MACHINE...SCREW, MACHINE
-
133020-596 ...CLAMP, HOSE...CLAMP, HOSE
-
143020-407 ...HOSE, ISC...HOSE, ISC
-
153020-329 ...SCREW, SHOULDER...SCREW, SHOULDER
-
163020-330 ...WASHER...WASHER
-
173020-331 ...SPACER...SPACER
-
183020-342 ...SENSOR, THROTTLE POSITION - ASSEMBLY...SENSOR, THROTTLE POSITION - ASSEMBLY
-
193020-343 ...SCREW, MACHINE...SCREW, MACHINE
-
203020-597 HOSE, VENTHOSE, VENT
-
213020-598 FITTINGFITTING
-
223020-599 HOSEHOSE
-
233020-600 CLAMP, HOSECLAMP, HOSE
-
243020-601 HOSEHOSE
-
253020-602 HOSEHOSE
-
263020-603 HOSEHOSE
-
273020-604 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
283020-605 SCREWSCREW
-
291623-285 CLAMP, HOSECLAMP, HOSE
-
303020-383 QUICK CONNECTQUICK CONNECT
-
311686-762 HARNESS, ENGINEHARNESS, ENGINE
-
320123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
320123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
