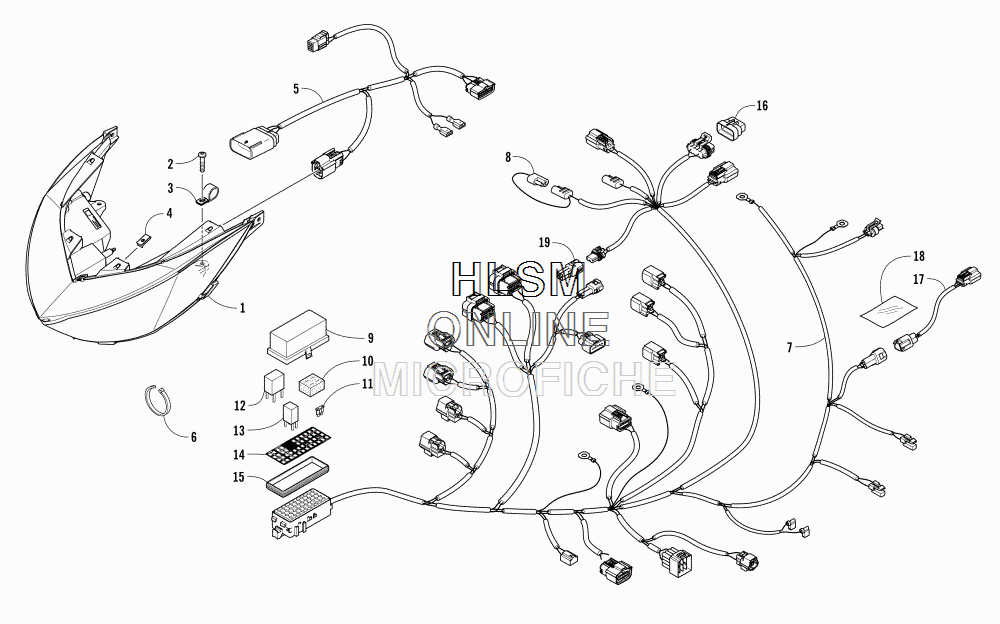

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 9000 SNO PRO 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10609-959 HEADLIGHT, LED - ASSEMBLYHEADLIGHT, LED - ASSEMBLY
-
21623-915 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
31623-675 CLAMPCLAMP
-
40423-031 NUT, SPEEDNUT, SPEED
-
51686-771 HARNESS, HOODHARNESS, HOOD
-
60123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
60123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
60123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
71686-807 HARNESS, MAIN (INC. 8-16)HARNESS, MAIN (INC. 8-16)
-
80486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
90430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
100430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
110430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
110430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
110430-099 ...FUSE, MINI - 25 AMP...FUSE, MINI - 25 AMP
-
110430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
120430-033 ...RELAY (5-PIN) 30 AMP...RELAY (5-PIN) 30 AMP
-
130430-045 ...RELAY (4-PIN) 20 AMP...RELAY (4-PIN) 20 AMP
-
142621-912 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
150430-086 ...SEAL...SEAL
-
160430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
171686-703 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
180619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
190630-364 COVER, DIAGNOSTICS CONNECTORCOVER, DIAGNOSTICS CONNECTOR
