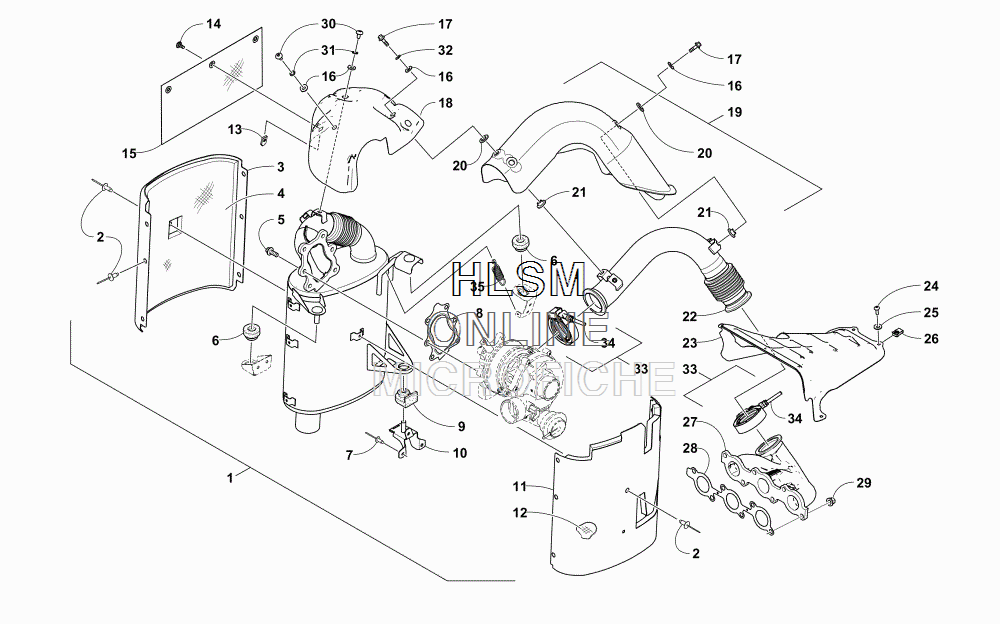

EXHAUST ASSEMBLY для Arctic Cat ZR 9000 THUNDERCAT 137 RED INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
12712-008 RESONATOR, EXHAUST - ASSEMBLY (INC. 2-4 AND 11-12)RESONATOR, EXHAUST - ASSEMBLY (INC. 2-4 AND 11-12)
-
28061-682 ...RIVET...RIVET
-
33612-180 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
43612-276 ...PACKING, RESONATOR - OUTER...PACKING, RESONATOR - OUTER
-
52623-207 SCREW, CAPSCREW, CAP
-
62612-186 GROMMETGROMMET
-
78060-710 RIVETRIVET
-
83612-194 GASKETGASKET
-
92612-912 GROMMETGROMMET
-
101712-790 BRACKET, MOUNTING - LOWERBRACKET, MOUNTING - LOWER
-
113612-181 SHIELD, HEAT - LEFTSHIELD, HEAT - LEFT
-
123612-182 PACKING, RESONATORPACKING, RESONATOR
-
131623-052 CLIP, U-NUTCLIP, U-NUT
-
142623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
152712-061 SHIELD, HEAT W/GROMMETSSHIELD, HEAT W/GROMMETS
-
168050-223 WASHER, FLATWASHER, FLAT
-
172623-232 SCREW, CAPSCREW, CAP
-
183612-159 SHIELD, HEATSHIELD, HEAT
-
192712-082 SHIELD, HEAT - W/ISOLATORS (INC. 20-21)SHIELD, HEAT - W/ISOLATORS (INC. 20-21)
-
202623-231 ...ISOLATOR, WASHER - FLAT...ISOLATOR, WASHER - FLAT
-
212623-230 ...ISOLATOR, WASHER - STEP...ISOLATOR, WASHER - STEP
-
222712-043 PIPE, EXHAUSTPIPE, EXHAUST
-
233612-135 SHIELD, HEAT - MANIFOLDSHIELD, HEAT - MANIFOLD
-
248476-516 SCREW, MACHINESCREW, MACHINE
-
258050-217 WASHERWASHER
-
261623-637 CLIP, U-NUTCLIP, U-NUT
-
273020-384 MANIFOLDMANIFOLD
-
283020-458 GASKETGASKET
-
293020-385 NUTNUT
-
308476-612 SCREW, MACHINESCREW, MACHINE
-
318053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
321623-409 RETAINER, PUSHNUTRETAINER, PUSHNUT
-
333612-134 CLAMP, EXHAUST (INC. 34)CLAMP, EXHAUST (INC. 34)
-
343612-272 ...BOLT W/NUT...BOLT W/NUT
-
350612-668 SPRINGSPRING
