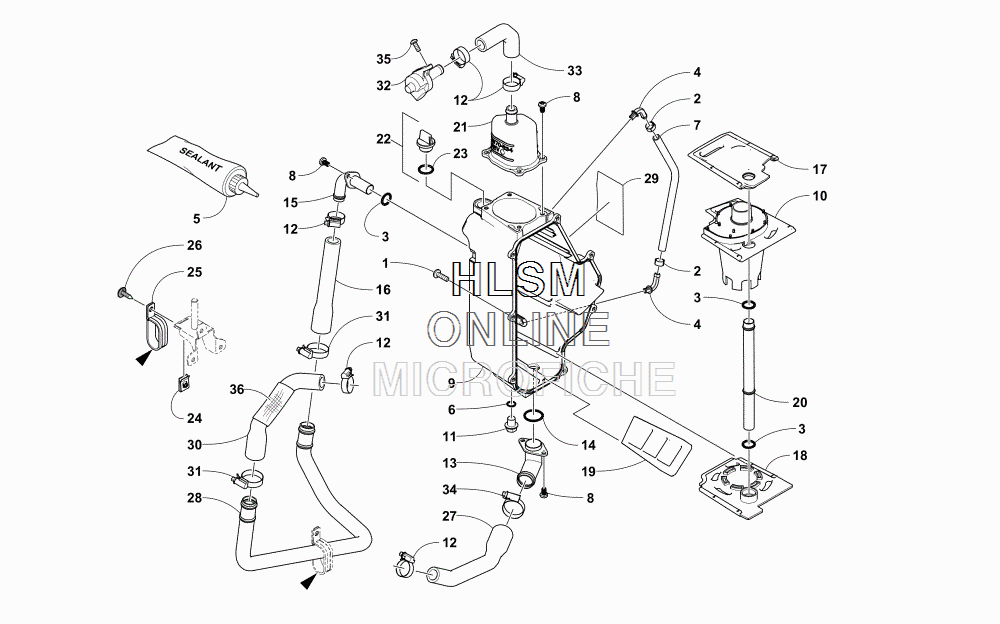

OIL TANK ASSEMBLY для Arctic Cat ZR 9000 THUNDERCAT 137 RED - 2017 года выпуска
-
№АртикулНазвание
-
11623-814 SCREW, MACHINESCREW, MACHINE
-
20610-415 CLAMP, HOSECLAMP, HOSE
-
30670-183 O-RINGO-RING
-
40913-004 FITTING, 90 DEGFITTING, 90 DEG
-
51048-063 SEALANT - 70 MLSEALANT - 70 ML
-
61602-213 O-RINGO-RING
-
70610-968 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
81623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
91770-144 TANK, OILTANK, OIL
-
101770-188 BAFFLE, MID-CONE - ASSEMBLYBAFFLE, MID-CONE - ASSEMBLY
-
112602-099 PLUGPLUG
-
122623-152 CLAMP, HOSECLAMP, HOSE
-
132670-220 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
142670-290 O-RINGO-RING
-
152670-523 FITTING, OIL TANK RETURNFITTING, OIL TANK RETURN
-
162670-526 HOSE, OILHOSE, OIL
-
172670-527 BAFFLE, OIL TANK - UPPERBAFFLE, OIL TANK - UPPER
-
182670-528 BAFFLE, OIL TANK - LOWERBAFFLE, OIL TANK - LOWER
-
192670-531 BAFFLE, OIL TANK - SCREENBAFFLE, OIL TANK - SCREEN
-
202670-532 TUBE - OIL TANKTUBE - OIL TANK
-
212670-534 BREATHER, OIL TANKBREATHER, OIL TANK
-
222670-535 CAP, OIL TANK (INC. 23)CAP, OIL TANK (INC. 23)
-
232670-536 ...O-RING, OIL CAP...O-RING, OIL CAP
-
241623-939 NUT, UNUT, U
-
252623-181 CLAMP, ROUTINGCLAMP, ROUTING
-
262623-163 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
272670-525 TUBE, OIL FEEDTUBE, OIL FEED
-
282670-497 TUBE, OIL RETURNTUBE, OIL RETURN
-
293621-576 DECAL, OIL LEVELDECAL, OIL LEVEL
-
301610-005 HOSE, OIL ENGINE OUTLET - RETURN TUBEHOSE, OIL ENGINE OUTLET - RETURN TUBE
-
312623-038 CLAMP, HOSECLAMP, HOSE
-
323020-416 VALVEVALVE
-
332670-539 HOSE, BREATHERHOSE, BREATHER
-
342623-088 CLAMP, HOSECLAMP, HOSE
-
358468-616 SCREW, MACHINESCREW, MACHINE
-
361610-035 LOOMLOOM
