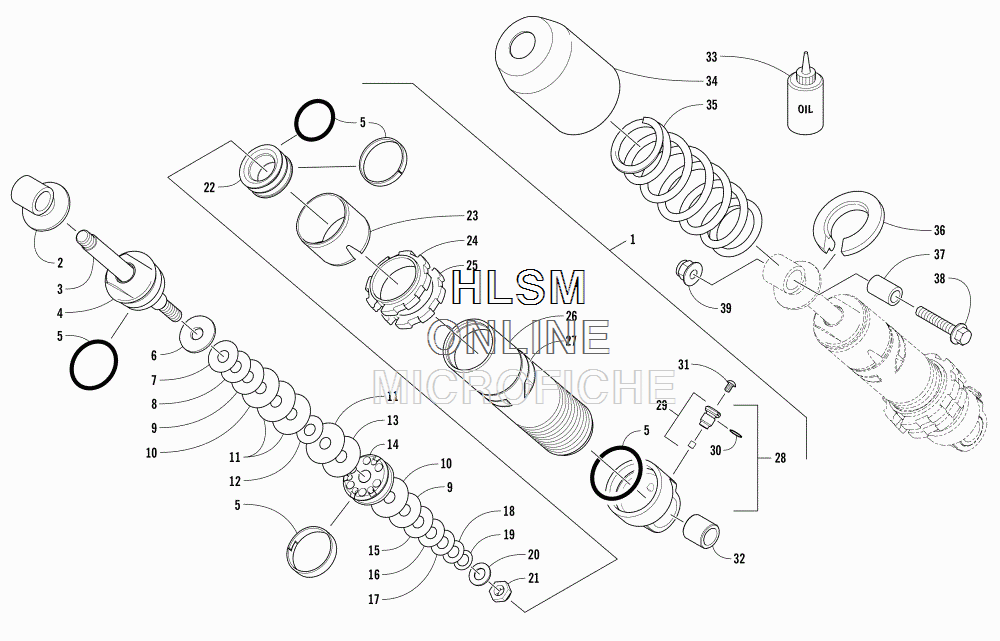

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M 8000 SNO PRO 153 3.0 ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
12704-786 SHOCK ABSORBER (INC. 2-32)SHOCK ABSORBER (INC. 2-32)
-
23604-797 ...EYELET, SHOCK...EYELET, SHOCK
-
33604-831 ...ROD, SHOCK...ROD, SHOCK
-
44604-125 ...BEARING, ENDCAP - ASSEMBLY...BEARING, ENDCAP - ASSEMBLY
-
54604-121 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
63604-789 ...WASHER, TOP OUT...WASHER, TOP OUT
-
73603-122 ...VALVE, 1.000 X 0.006 IN....VALVE, 1.000 X 0.006 IN.
-
83603-124 ...VALVE, 1.000 X 0.008 IN....VALVE, 1.000 X 0.008 IN.
-
93603-145 ...VALVE, 1.100 X 0.010 IN....VALVE, 1.100 X 0.010 IN.
-
103603-175 ...VALVE, 1.250 X 0.010 IN....VALVE, 1.250 X 0.010 IN.
-
113603-184 ...VALVE, 1.300 X 0.008 IN....VALVE, 1.300 X 0.008 IN.
-
123603-114 ...VALVE, 0.900 X 0.008 IN....VALVE, 0.900 X 0.008 IN.
-
133603-182 ...VALVE, 1.300 X 0.006 IN....VALVE, 1.300 X 0.006 IN.
-
142603-998 ...PISTON, 0.063 IN. - ORIFICE...PISTON, 0.063 IN. - ORIFICE
-
153603-125 ...VALVE, 1.000 X 0.010 IN....VALVE, 1.000 X 0.010 IN.
-
163603-115 ...VALVE, 0.900 X 0.010 IN....VALVE, 0.900 X 0.010 IN.
-
173603-105 ...VALVE, 0.800 X 0.010 IN....VALVE, 0.800 X 0.010 IN.
-
183603-092 ...VALVE, 0.700 X 0.006 IN....VALVE, 0.700 X 0.006 IN.
-
192603-015 ...VALVE, 0.550 X 0.020 IN....VALVE, 0.550 X 0.020 IN.
-
203604-775 ...WASHER, BACKUP...WASHER, BACKUP
-
213604-739 ...NUT...NUT
-
223604-772 ...PISTON, FLOATING...PISTON, FLOATING
-
233604-773 ...SLEEVE, WEAR...SLEEVE, WEAR
-
242603-014 ...NUT, ADJUSTER...NUT, ADJUSTER
-
253604-779 ...COLLAR, LOCKING - ADJUSTER NUT...COLLAR, LOCKING - ADJUSTER NUT
-
263604-830 ...BODY, SHOCK...BODY, SHOCK
-
271621-728 ...DECAL, WARNING - HIGH PRESSURE...DECAL, WARNING - HIGH PRESSURE
-
282704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 29-30)...END CAP, SHOCK - ASSEMBLY (INC. 29-30)
-
293604-751 ......VALVE, PRESSURE (INC. 30)......VALVE, PRESSURE (INC. 30)
-
303604-733 .........O-RING, VALVE.........O-RING, VALVE
-
313604-750 ...SCREW, MACHINE...SCREW, MACHINE
-
323604-906 ...BEARING...BEARING
-
335639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
340604-790 COVER, SHOCKCOVER, SHOCK
-
351704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
363604-200 RETAINER, SPRINGRETAINER, SPRING
-
373604-845 AXLEAXLE
-
388413-845 SCREW, CAPSCREW, CAP
-
398437-804 NUT, LOCKNUT, LOCK
