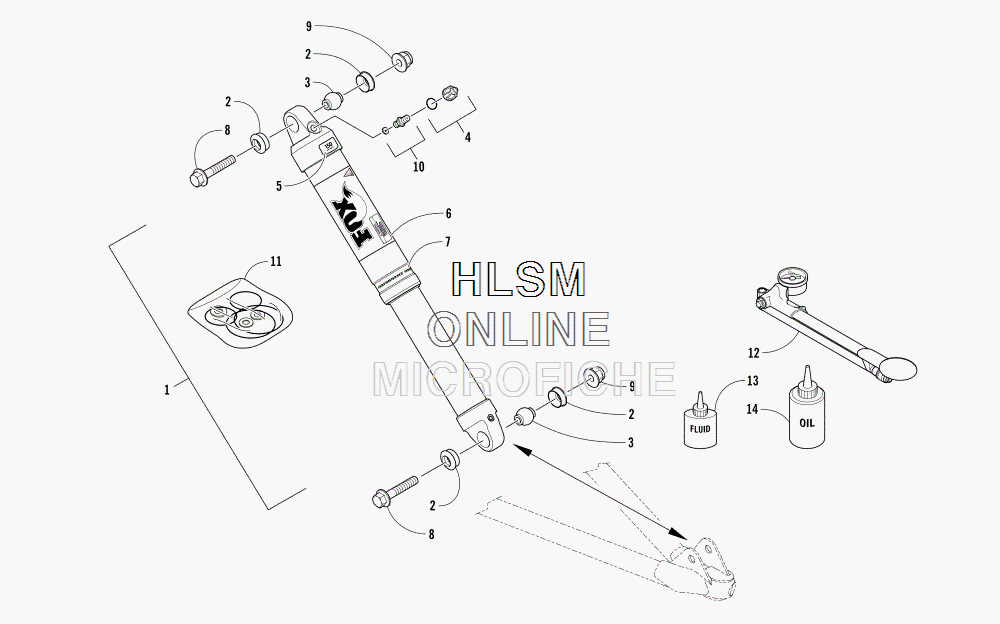

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 GREEN EARLY RELEASE - 2018 года выпуска
-
№АртикулНазвание
-
13703-752 SHOCK, SKI (INC. 4-7 AND 10-11)SHOCK, SKI (INC. 4-7 AND 10-11)
-
23603-260 BUSHINGBUSHING
-
33603-261 SLEEVESLEEVE
-
43603-366 CAP, AIR VALVE - W/O-RINGCAP, AIR VALVE - W/O-RING
-
53603-359 DECAL, PSIDECAL, PSI
-
63603-369 DECAL, SHOCKDECAL, SHOCK
-
73603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
88413-850 SCREW, CAPSCREW, CAP
-
98437-804 NUT, LOCKNUT, LOCK
-
102603-511 VALVE, AIRVALVE, AIR
-
113603-293 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
120641-257 PUMP, SHOCKPUMP, SHOCK
-
134639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
145639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
