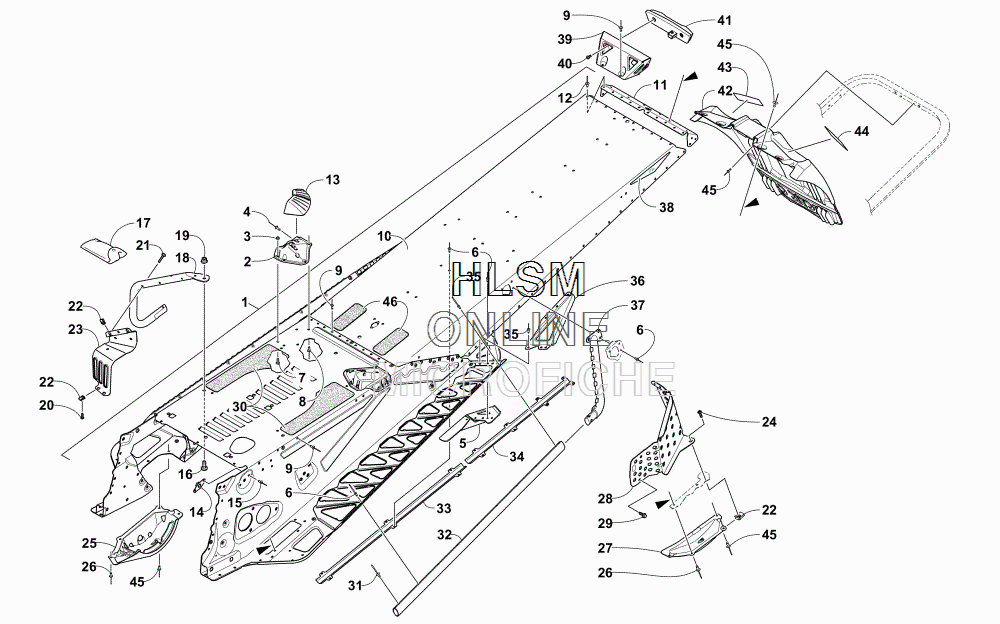

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat M 9000 KING CAT 162 BLACK - 2018 года выпуска
-
№АртикулНазвание
-
-2707-647 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
13707-133 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
21707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
21707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
38422-502 ...NUT...NUT
-
41623-206 ...RIVET...RIVET
-
52707-286 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
52707-287 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
68060-706 ...RIVET - BLACK...RIVET - BLACK
-
78476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
81623-257 ...RIVET...RIVET
-
98060-702 ...RIVET - BLACK...RIVET - BLACK
-
102707-968 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
111707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
128060-482 ...RIVET...RIVET
-
136606-664 ...SUPPORT, GAS TANK - RIGHT...SUPPORT, GAS TANK - RIGHT
-
136606-665 ...SUPPORT, GAS TANK - LEFT...SUPPORT, GAS TANK - LEFT
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-708 RIVET - BLACKRIVET - BLACK
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
170744-088 KIT, TOOLKIT, TOOL
-
182707-870 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
182707-871 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUTNUT
-
208470-516 SCREW, MACHINESCREW, MACHINE
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
232707-658 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
232707-659 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
248470-520 SCREW, MACHINESCREW, MACHINE
-
251607-646 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-710 RIVETRIVET
-
271607-645 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
282707-904 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
298408-613 SCREW, CAPSCREW, CAP
-
306606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
306606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
311623-130 RIVETRIVET
-
321707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
330630-307 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
340630-280 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
351623-241 RIVETRIVET
-
362707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
362707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
371707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
458061-706 RIVETRIVET
-
466606-877 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
