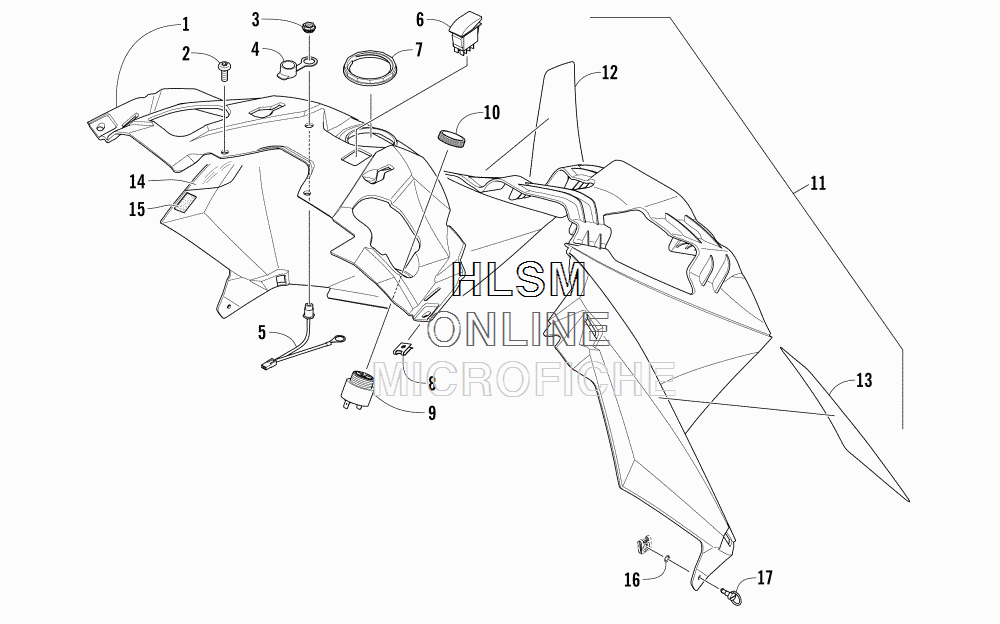

CONSOLE ASSEMBLY для Arctic Cat PANTERA 7000 BLACK - 2018 года выпуска
-
№АртикулНазвание
-
15706-870 CONSOLE, UPPER - BLACKCONSOLE, UPPER - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30609-944 NUT, RETAININGNUT, RETAINING
-
40609-945 COVER, OUTLET - SHIELDCOVER, OUTLET - SHIELD
-
50609-940 OUTLET, HEATED SHIELDOUTLET, HEATED SHIELD
-
60609-836 SWITCH, HEATED SEATSWITCH, HEATED SEAT
-
76606-390 NUT, RETAININGNUT, RETAINING
-
81623-939 NUT, UNUT, U
-
90630-243 ALARM, REVERSE (INC. 10)ALARM, REVERSE (INC. 10)
-
100630-017 ...RING, RETAINING...RING, RETAINING
-
114718-454 CONSOLE, LOWER - W/WARNING DECALS - BLACK (INC. 12-15)CONSOLE, LOWER - W/WARNING DECALS - BLACK (INC. 12-15)
-
129611-499 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
139611-498 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
143612-321 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
156990-323 ...VELCRO - 3 FT...VELCRO - 3 FT
-
162623-004 NUT, PUSHNUT, PUSH
-
172623-003 PIN, RETAININGPIN, RETAINING
