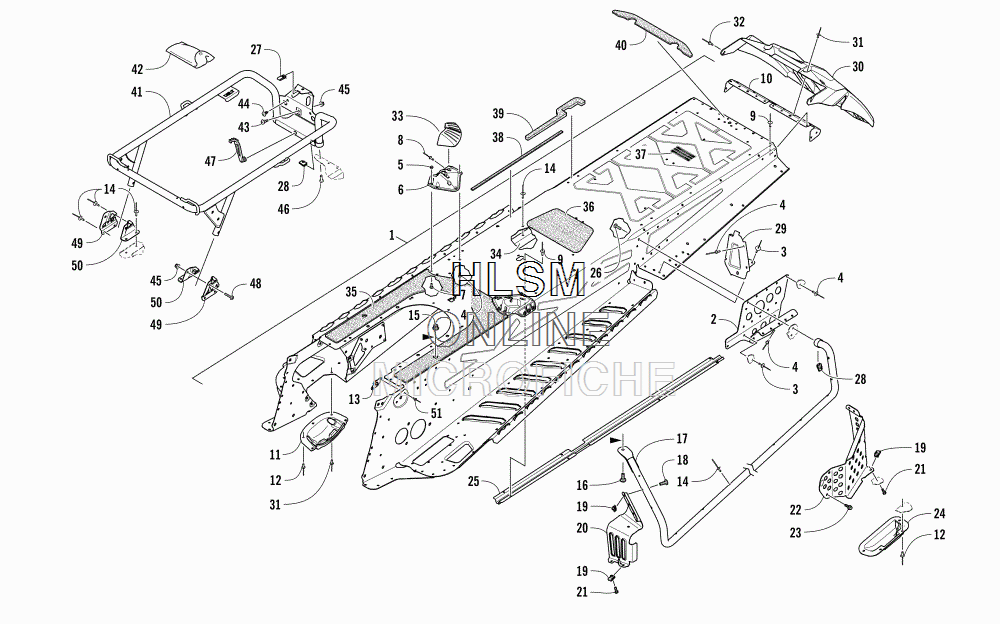

TUNNEL AND REAR RACK ASSEMBLY для Arctic Cat XF 7000 CROSSTOUR ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
-2707-451 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
11707-875 TUNNEL ASSEMBLY (INC. 2-10)TUNNEL ASSEMBLY (INC. 2-10)
-
22707-090 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
22707-091 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
38060-706 ...RIVET...RIVET
-
41623-241 ...RIVET...RIVET
-
58422-502 ...NUT...NUT
-
61707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
61707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
78476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
81623-257 ...RIVET...RIVET
-
98060-504 ...RIVET...RIVET
-
101607-153 ...END CAP, TUNNEL...END CAP, TUNNEL
-
111607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
128061-708 RIVETRIVET
-
130608-631 PLATE, RETAININGPLATE, RETAINING
-
148060-706 RIVETRIVET
-
158427-802 NUTNUT
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
171707-602 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
171707-603 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221707-955 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
238408-613 SCREW, CAPSCREW, CAP
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
250630-301 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
268477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
271623-030 CLIP, U-NUTCLIP, U-NUT
-
280423-577 CLIP, U-NUTCLIP, U-NUT
-
291607-194 CLOSE OFF, RUNNING BOARD - RIGHTCLOSE OFF, RUNNING BOARD - RIGHT
-
291607-195 CLOSE OFF, RUNNING BOARD - LEFTCLOSE OFF, RUNNING BOARD - LEFT
-
306606-486 SNOWFLAPSNOWFLAP
-
318061-706 RIVETRIVET
-
328061-506 RIVETRIVET
-
336606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
336606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
341607-689 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
350617-781 SEAL, FOAMSEAL, FOAM
-
367606-436 PAD, FUEL TANKPAD, FUEL TANK
-
372621-316 DECAL, CAPACITY - STORAGE BOXDECAL, CAPACITY - STORAGE BOX
-
380617-743 FOAM, SIDE PANELFOAM, SIDE PANEL
-
390617-748 FOAM, RACK - RIGHTFOAM, RACK - RIGHT
-
390617-749 FOAM, RACK - LEFTFOAM, RACK - LEFT
-
400617-744 FOAM, FASCIA - REARFOAM, FASCIA - REAR
-
415706-635 RACK, REAR - BLACKRACK, REAR - BLACK
-
420744-088 KIT, TOOLKIT, TOOL
-
430423-356 SCREW, SHOULDERSCREW, SHOULDER
-
442623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
458427-602 NUT, LOCKNUT, LOCK
-
462623-059 SCREW, MACHINESCREW, MACHINE
-
476606-392 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
488468-635 SCREW, MACHINESCREW, MACHINE
-
495706-450 BRACKET, MOUNTING - RACK - OUTER - RIGHT - BLACKBRACKET, MOUNTING - RACK - OUTER - RIGHT - BLACK
-
495706-451 BRACKET, MOUNTING - RACK - OUTER - LEFT - BLACKBRACKET, MOUNTING - RACK - OUTER - LEFT - BLACK
-
505706-448 BRACKET, MOUNTING - RACK - INNER - RIGHT - BLACKBRACKET, MOUNTING - RACK - INNER - RIGHT - BLACK
-
505706-449 BRACKET, MOUNTING - RACK - INNER - LEFT - BLACKBRACKET, MOUNTING - RACK - INNER - LEFT - BLACK
-
518060-688 RIVETRIVET
