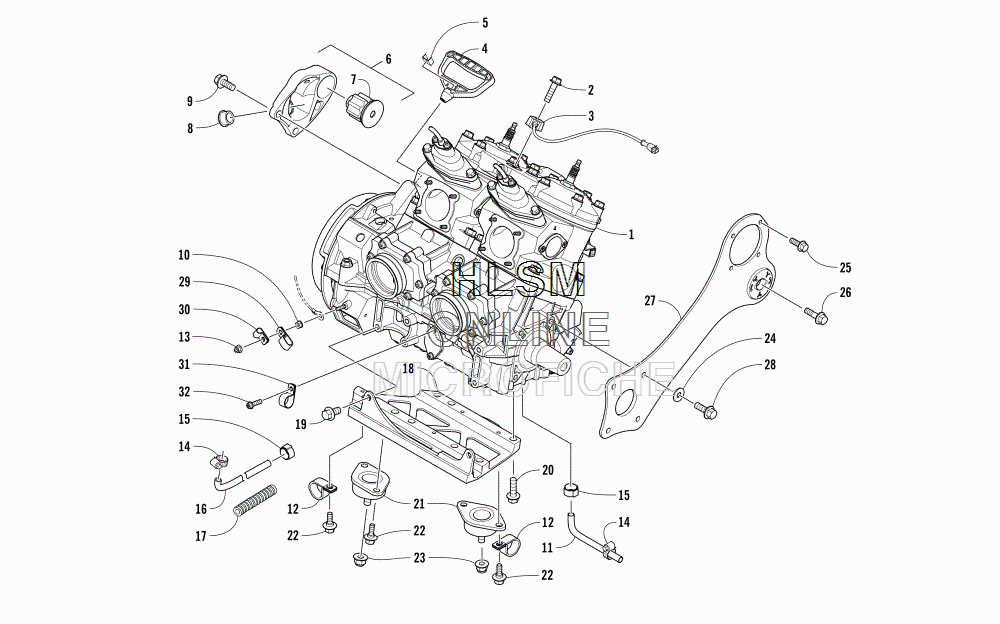

ENGINE AND RELATED PARTS для Arctic Cat XF 8000 CROSSTREK ES 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
10962-055 ENGINE, LONG BLOCKENGINE, LONG BLOCK
-
10962-053 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
20923-049 SCREW, CAPSCREW, CAP
-
30902-024 SENSOR, KNOCKSENSOR, KNOCK
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
60708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)
-
70608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
80608-633 ...BUSHING...BUSHING
-
98409-026 SCREW, CAPSCREW, CAP
-
100623-038 NUT W/WASHERNUT W/WASHER
-
111610-009 HOSE, COOLANT - THROTTLE BODYHOSE, COOLANT - THROTTLE BODY
-
121623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
138427-602 NUT, LOCKNUT, LOCK
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150610-563 CLAMP, HOSECLAMP, HOSE
-
160610-779 HOSE, COOLANT - THROTTLE BODYHOSE, COOLANT - THROTTLE BODY
-
170619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
180708-657 PLATE, ENGINE MOUNTING - LOWER (INC. 21-22)PLATE, ENGINE MOUNTING - LOWER (INC. 21-22)
-
198409-821 SCREW, CAPSCREW, CAP
-
208409-036 SCREW, CAPSCREW, CAP
-
210708-658 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
221623-944 SCREW, SHOULDERSCREW, SHOULDER
-
238427-002 NUT, LOCKNUT, LOCK
-
248050-252 WASHERWASHER
-
258408-621 SCREW, CAPSCREW, CAP
-
268408-826 SCREW, CAPSCREW, CAP
-
270708-680 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
288409-821 SCREW, CAPSCREW, CAP
-
291623-733 CLAMP, ROUTINGCLAMP, ROUTING
-
301623-676 CLAMP, ROUTINGCLAMP, ROUTING
-
311623-675 CLAMPCLAMP
-
320923-025 SCREW, CAPSCREW, CAP
