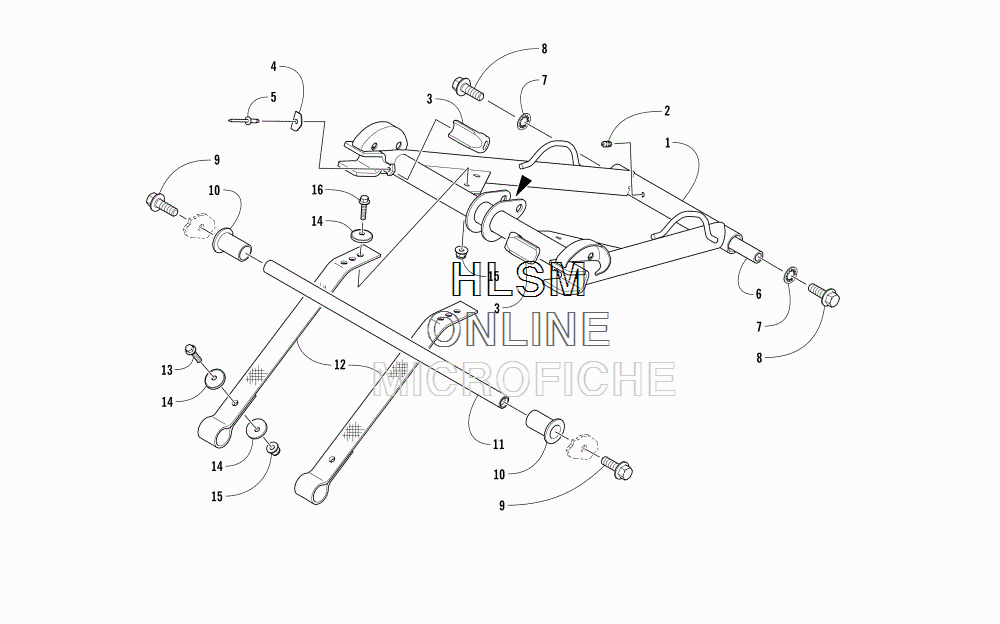

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat XF 9000 CROSSTREK 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
13704-004 ARM, FRONT SUSPENSION - BLACK (INC. 2-5)ARM, FRONT SUSPENSION - BLACK (INC. 2-5)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET - BLACK...RIVET - BLACK
-
64604-086 AXLE, INNERAXLE, INNER
-
71623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
88413-031 SCREW, CAPSCREW, CAP
-
98408-041 SCREW, CAPSCREW, CAP
-
103604-233 BUSHING, FLAREDBUSHING, FLARED
-
113604-663 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
123604-823 STRAP, LIMITERSTRAP, LIMITER
-
138408-630 SCREW, CAPSCREW, CAP
-
148450-109 WASHERWASHER
-
158427-602 NUT, LOCKNUT, LOCK
-
168408-620 SCREW, CAPSCREW, CAP
