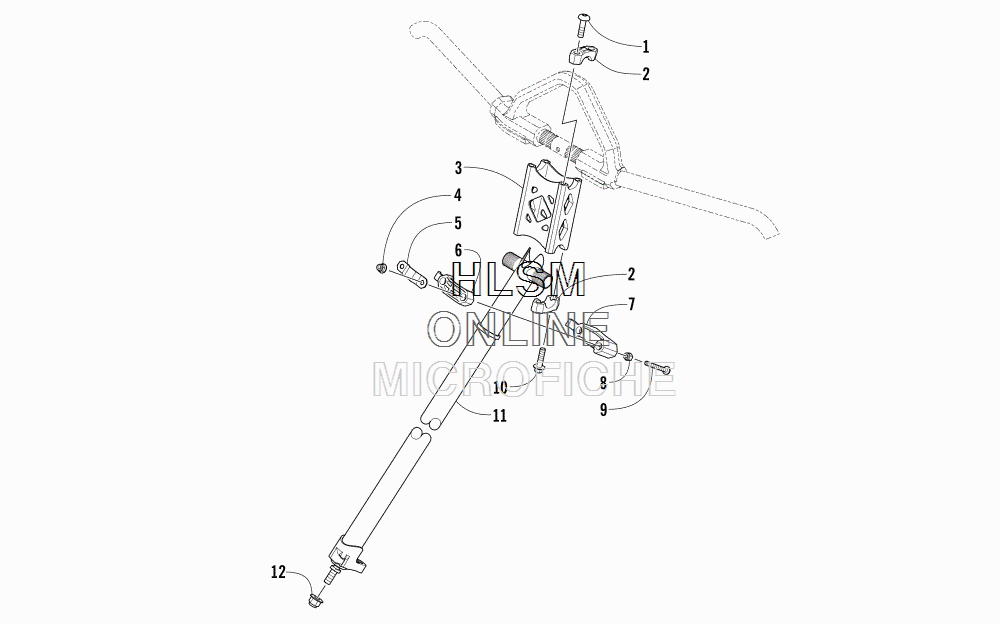

STEERING POST ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) GREEN - 2018 года выпуска
-
№АртикулНазвание
-
18477-830 SCREW, MACHINESCREW, MACHINE
-
21705-461 CAP, RISER BLOCK - BLACKCAP, RISER BLOCK - BLACK
-
31705-559 BLOCK, RISER - GREENBLOCK, RISER - GREEN
-
48427-602 NUT, LOCKNUT, LOCK
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-127 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
71605-154 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
88422-602 NUTNUT
-
92623-070 SCREW, MACHINESCREW, MACHINE
-
108408-830 SCREW, CAPSCREW, CAP
-
111705-522 POST, STEERINGPOST, STEERING
-
122623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
