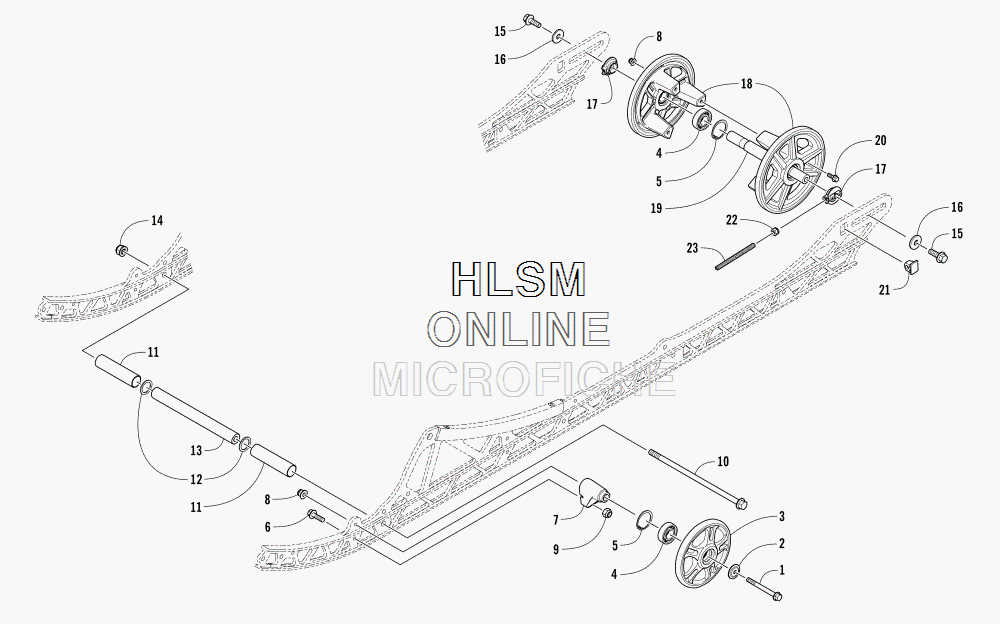

IDLER WHEEL ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (2.20) GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-386 WHEEL, IDLER - BLACK (INC. TWO NO. 4-5)WHEEL, IDLER - BLACK (INC. TWO NO. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT, LOCKNUT, LOCK
-
98422-602 NUTNUT
-
101423-431 SCREW, CAPSCREW, CAP
-
113604-083 SPACERSPACER
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
142623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
158408-031 SCREW, CAPSCREW, CAP
-
161623-931 WASHERWASHER
-
173604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
184604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)
-
193604-640 AXLE, REARAXLE, REAR
-
208408-620 SCREW, CAPSCREW, CAP
-
213604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
228422-802 NUT, LOCKNUT, LOCK
-
232623-182 SCREW, CAPSCREW, CAP
