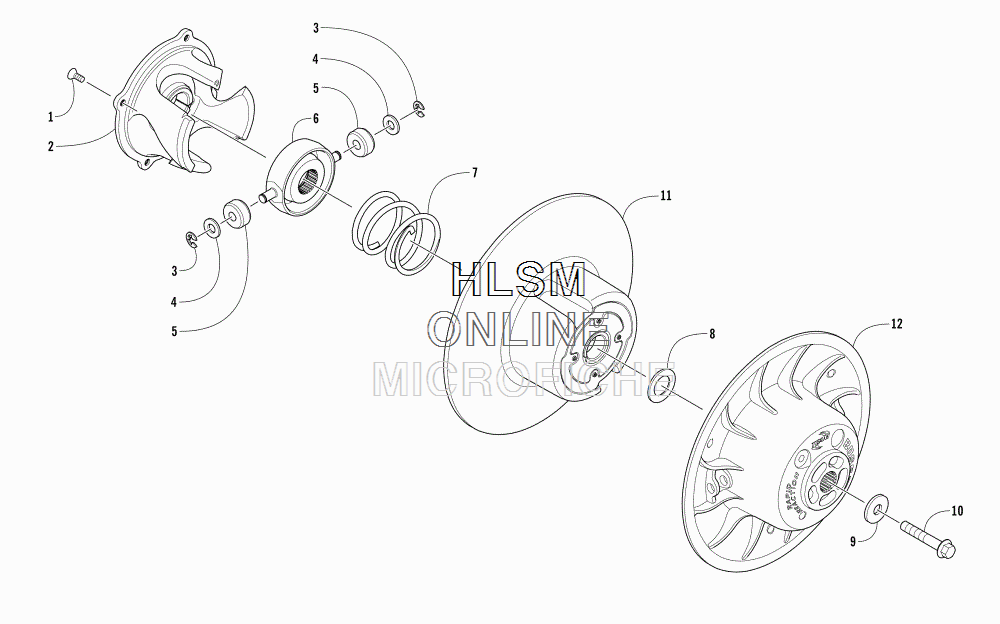

DRIVEN CLUTCH для Arctic Cat ZR 6000 EL TIGRE ES 129 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
-0726-412 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
10648-875 SCREW, MACHINESCREW, MACHINE
-
20648-948 CAM, DRIVENCAM, DRIVEN
-
30648-701 RING, RETAININGRING, RETAINING
-
40648-700 WASHER, THRUSTWASHER, THRUST
-
50648-842 ROLLERROLLER
-
60648-841 SPIDERSPIDER
-
70648-860 SPRING, DRIVEN CLUTCHSPRING, DRIVEN CLUTCH
-
80648-850 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
80648-849 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
92623-120 WASHERWASHER
-
108409-060 SCREW, CAPSCREW, CAP
-
110748-776 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
120748-040 SHEAVE, STATIONARYSHEAVE, STATIONARY
