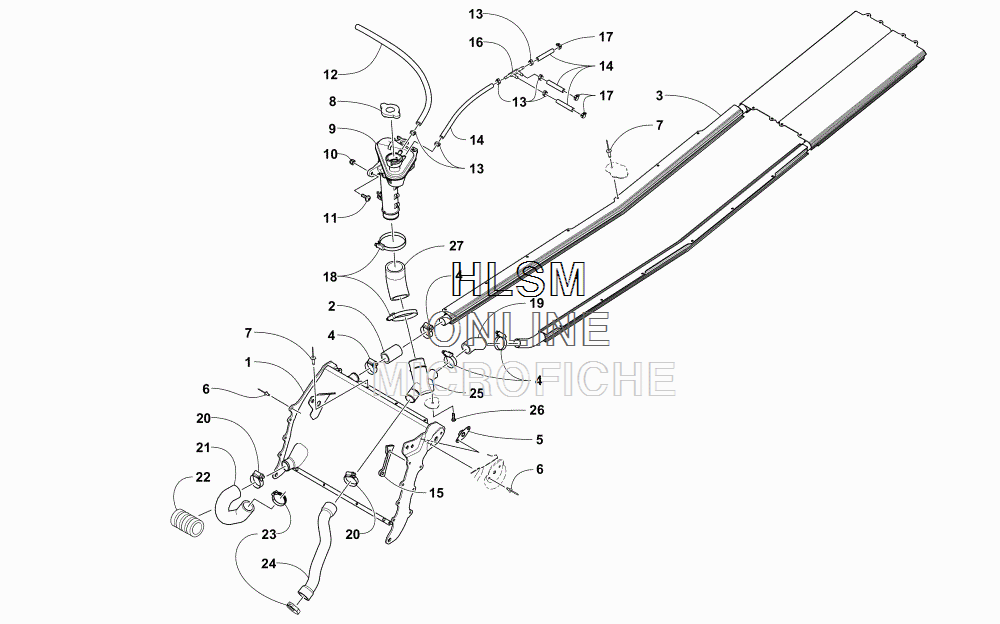

COOLING ASSEMBLY для Arctic Cat ZR 6000 EL TIGRE ES 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
10713-196 EXCHANGER, HEATEXCHANGER, HEAT
-
20613-214 HOSE, COOLANTHOSE, COOLANT
-
30713-166 EXCHANGER, HEAT - REAREXCHANGER, HEAT - REAR
-
42623-038 CLAMP, HOSECLAMP, HOSE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVET - BLACKRIVET - BLACK
-
68060-688 RIVET - ZINCRIVET - ZINC
-
78060-706 RIVET - BLACKRIVET - BLACK
-
80413-255 CAP, RADIATORCAP, RADIATOR
-
90613-135 TANK, COOLANTTANK, COOLANT
-
108422-602 NUTNUT
-
118476-625 SCREW, CAPSCREW, CAP
-
120610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
120610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
131623-655 CLAMP, HOSECLAMP, HOSE
-
140610-538 HOSE - 25 FTHOSE - 25 FT
-
150613-272 BUMPER, PROTECTOR - COOLANT HOSEBUMPER, PROTECTOR - COOLANT HOSE
-
160610-717 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
170623-063 CLAMP, HOSECLAMP, HOSE
-
180423-317 CLAMPCLAMP
-
190613-231 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
202623-088 CLAMP, HOSECLAMP, HOSE
-
210613-230 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
220619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
231623-656 CLAMP, HOSECLAMP, HOSE
-
240613-234 HOSE, COOLANT - TANK/ENGINEHOSE, COOLANT - TANK/ENGINE
-
250613-228 FITTINGFITTING
-
261623-251 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
270613-229 HOSE, COOLANT - TANK/HEAT EXCHANGERHOSE, COOLANT - TANK/HEAT EXCHANGER
