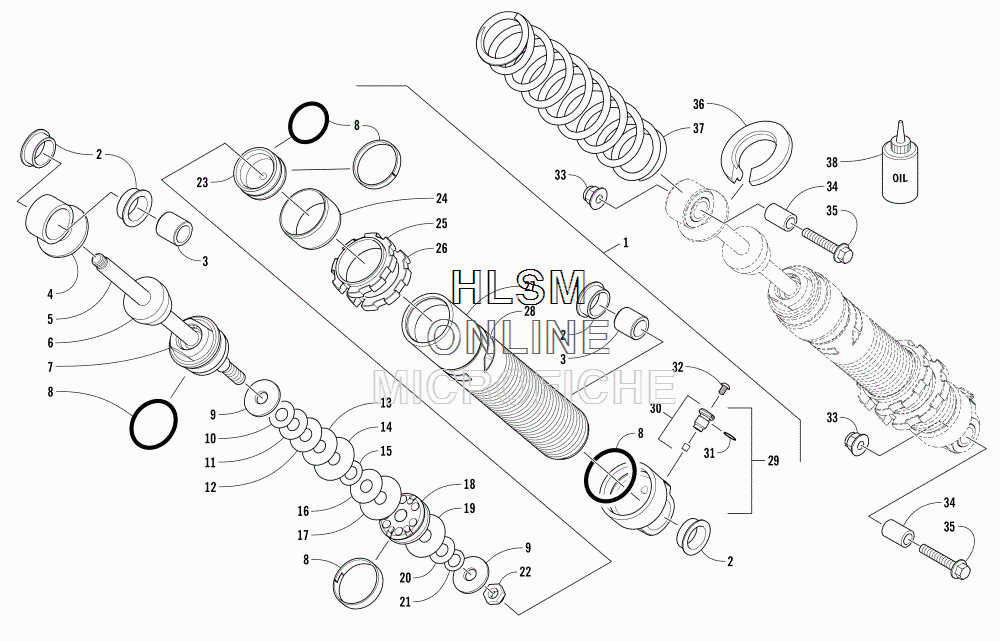

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 6000 ES 129 GREEN - 2018 года выпуска

№

Артикул

Название
1

3703-469 SHOCK, SKI (INC. 2-32)

SHOCK, SKI (INC. 2-32)

20 590 ₽
2

3604-738 ...BUSHING

...BUSHING

2 700 ₽
3

3604-737 ...SLEEVE

...SLEEVE

1 870 ₽
4

2603-020 ...EYELET, SHOCK

...EYELET, SHOCK

10 810 ₽
5

3604-762 ...ROD, SHOCK

...ROD, SHOCK

23 710 ₽
6

3604-740 ...BUMPER, SHOCK

...BUMPER, SHOCK

2 490 ₽
7

4604-126 ...BEARING - ASSEMBLY

...BEARING - ASSEMBLY

7 270 ₽
8

4604-121 ...KIT, SEAL/REBUILD

...KIT, SEAL/REBUILD

8 730 ₽
9

3604-789 ...WASHER, TOP OUT

...WASHER, TOP OUT

480 ₽
10

3603-105 ...VALVE, 0.800 X 0.010 IN.

...VALVE, 0.800 X 0.010 IN.

980 ₽
11

3603-115 ...VALVE, 0.900 X 0.010 IN.

...VALVE, 0.900 X 0.010 IN.

980 ₽
12

3603-125 ...VALVE, 1.000 X 0.010 IN.

...VALVE, 1.000 X 0.010 IN.

980 ₽
13

3603-145 ...VALVE, 1.100 X 0.010 IN.

...VALVE, 1.100 X 0.010 IN.

980 ₽
14

3603-175 ...VALVE, 1.250 X 0.010 IN.

...VALVE, 1.250 X 0.010 IN.

980 ₽
15

3603-094 ...VALVE, 0.700 X 0.008 IN.

...VALVE, 0.700 X 0.008 IN.

1 040 ₽
16

3603-124 ...VALVE, 1.000 X 0.008 IN.

...VALVE, 1.000 X 0.008 IN.

980 ₽
17

3603-182 ...VALVE, 1.300 X 0.006 IN.

...VALVE, 1.300 X 0.006 IN.

980 ₽
18

3604-790 ...PISTON, 37 BORE-2.35 ORIFICE

...PISTON, 37 BORE-2.35 ORIFICE

5 190 ₽
19

3603-174 ...VALVE, 1.250 X 0.008 IN.

...VALVE, 1.250 X 0.008 IN.

980 ₽
20

3603-106 ...VALVE, 0.800 X 0.012 IN.

...VALVE, 0.800 X 0.012 IN.

980 ₽
21

2603-015 ...VALVE, 0.550 X 0.020 IN.

...VALVE, 0.550 X 0.020 IN.

1 020 ₽
22

3604-739 ...NUT

...NUT

650 ₽
23

3604-772 ...PISTON, FLOATING

...PISTON, FLOATING

5 400 ₽
24

3604-773 ...SLEEVE, WEAR

...SLEEVE, WEAR

4 780 ₽
25

2603-014 ...NUT, ADJUSTER

...NUT, ADJUSTER

7 900 ₽
26

3604-779 ...COLLAR, LOCKING - ADJUSTER NUT

...COLLAR, LOCKING - ADJUSTER NUT

6 650 ₽
27

3604-757 ...BODY, SHOCK

...BODY, SHOCK

18 300 ₽
28

1621-728 ...DECAL, WARNING - HIGH PRESSURE

...DECAL, WARNING - HIGH PRESSURE

520 ₽
29

2704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 30-31)

...END CAP, SHOCK - ASSEMBLY (INC. 30-31)

24 540 ₽
30

3604-751 ......VALVE, PRESSURE (INC. 31)

......VALVE, PRESSURE (INC. 31)

18 510 ₽
31

3604-733 .........O-RING, VALVE

.........O-RING, VALVE

770 ₽
32

3604-750 ...SCREW, MACHINE

...SCREW, MACHINE

380 ₽
33

8427-002 NUT, LOCK

NUT, LOCK

150 ₽
34

3604-109 SLEEVE

SLEEVE

670 ₽
35

8408-050 SCREW, CAP

SCREW, CAP

420 ₽
36

3604-200 RETAINER, SPRING

RETAINER, SPRING

920 ₽
37

2703-860 SPRING, COMPRESSION - BLACK

SPRING, COMPRESSION - BLACK

9 150 ₽
38

5639-530 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
