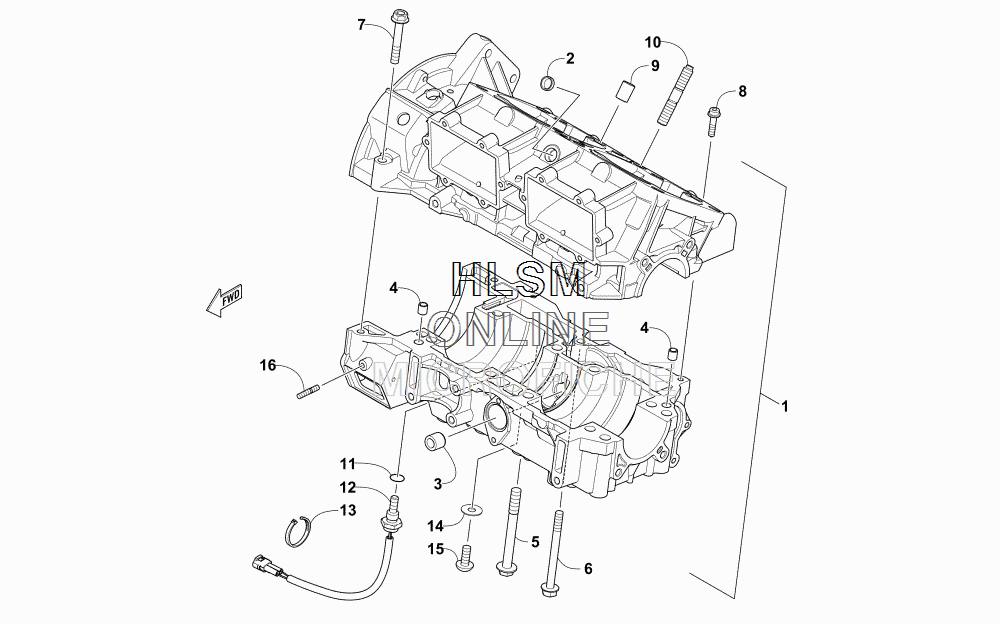

CRANKCASE ASSEMBLY для Arctic Cat ZR 6000 LTD ES 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
11901-001 CRANKCASE (INC. 2-3)CRANKCASE (INC. 2-3)
-
20901-013 ...PLUG...PLUG
-
30901-004 ...BUSHING...BUSHING
-
40929-003 PIN, DOWELPIN, DOWEL
-
50923-034 SCREW, CAPSCREW, CAP
-
60923-022 SCREW, CAPSCREW, CAP
-
70923-012 SCREW, CAPSCREW, CAP
-
80923-026 SCREW, CAPSCREW, CAP
-
90829-002 PIN, DOWELPIN, DOWEL
-
100923-059 BOLT, STUDBOLT, STUD
-
110923-057 GASKET - COPPERGASKET - COPPER
-
120902-010 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
130923-040 TIE, CABLE - 7.6 IN.TIE, CABLE - 7.6 IN.
-
140830-155 GASKETGASKET
-
158468-613 SCREW, CAPSCREW, CAP
-
160923-058 BOLT, STUDBOLT, STUD
