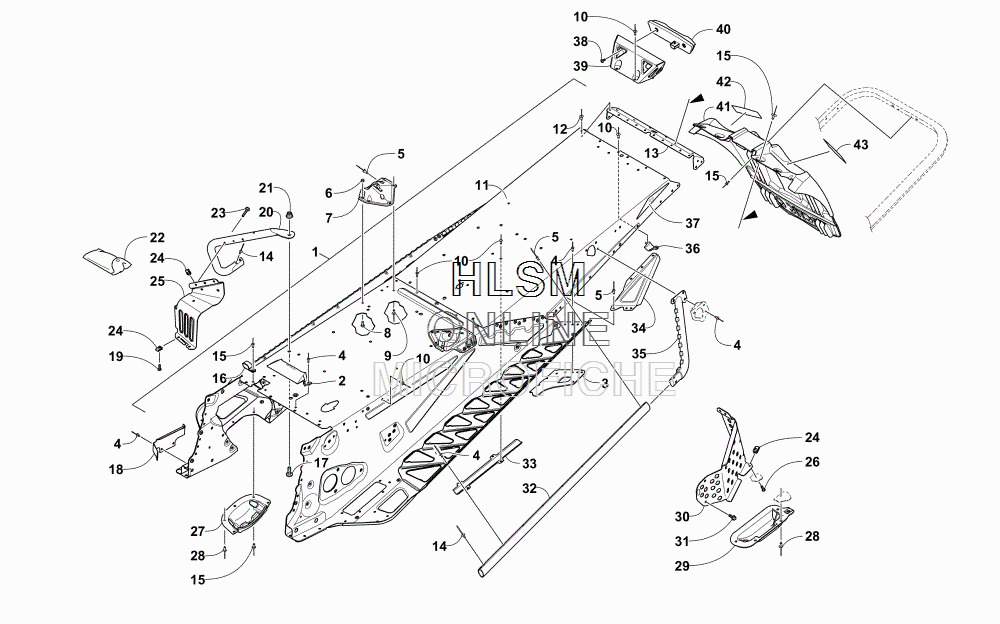

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES 129 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
-2707-881 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
13707-136 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
20630-353 ...PROTECTOR, HARNESS...PROTECTOR, HARNESS
-
31707-916 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
31707-917 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ...RIVET - BLACK...RIVET - BLACK
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
112707-931 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-504 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
141623-130 RIVETRIVET
-
158061-706 RIVETRIVET
-
161623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
180608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
198470-516 SCREW, MACHINESCREW, MACHINE
-
202707-684 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
202707-685 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
218427-802 NUTNUT
-
220744-087 KIT, TOOLKIT, TOOL
-
238468-535 SCREW, MACHINESCREW, MACHINE
-
241623-637 CLIP, U-NUTCLIP, U-NUT
-
251707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
251707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
268470-520 SCREW, MACHINESCREW, MACHINE
-
271607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
288061-708 RIVETRIVET
-
290607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
302707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
318408-613 SCREW, CAPSCREW, CAP
-
321707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
330630-338 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
341707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
341707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
351707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
351707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
388470-510 SCREW, MACHINESCREW, MACHINE
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
