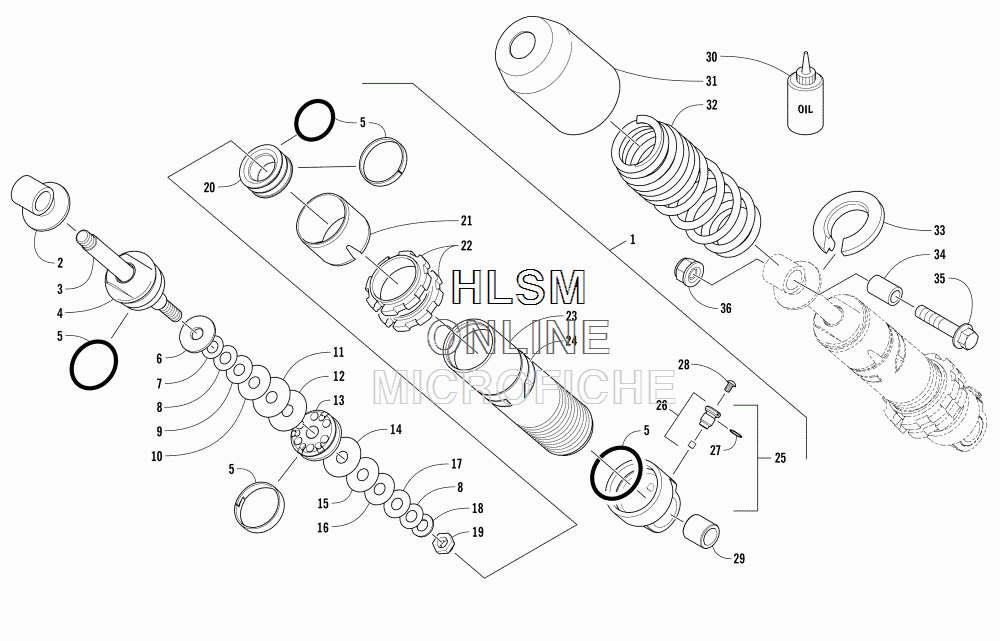

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 7000 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
12704-705 SHOCK ABSORBER (INC. 2-29)SHOCK ABSORBER (INC. 2-29)
-
23604-797 ...EYELET, SHOCK...EYELET, SHOCK
-
33604-831 ...ROD, SHOCK...ROD, SHOCK
-
44604-125 ...BEARING, ENDCAP - ASSEMBLY...BEARING, ENDCAP - ASSEMBLY
-
54604-121 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
63604-789 ...WASHER, TOP OUT...WASHER, TOP OUT
-
73603-096 ...VALVE, 0.700 X 0.012 IN....VALVE, 0.700 X 0.012 IN.
-
83603-105 ...VALVE, 0.800 X 0.010 IN....VALVE, 0.800 X 0.010 IN.
-
93603-114 ...VALVE, 0.900 X 0.008 IN....VALVE, 0.900 X 0.008 IN.
-
103603-124 ...VALVE, 1.000 X 0.008 IN....VALVE, 1.000 X 0.008 IN.
-
113603-144 ...VALVE, 1.100 X 0.008 IN....VALVE, 1.100 X 0.008 IN.
-
123603-184 ...VALVE, 1.300 X 0.008 IN....VALVE, 1.300 X 0.008 IN.
-
133604-790 ...PISTON, 37 BORE-2.35 ORIFICE...PISTON, 37 BORE-2.35 ORIFICE
-
143603-174 ...VALVE, 1.250 X 0.008 IN....VALVE, 1.250 X 0.008 IN.
-
153603-145 ...VALVE, 1.100 X 0.010 IN....VALVE, 1.100 X 0.010 IN.
-
163603-125 ...VALVE, 1.000 X 0.010 IN....VALVE, 1.000 X 0.010 IN.
-
173603-115 ...VALVE, 0.900 X 0.010 IN....VALVE, 0.900 X 0.010 IN.
-
183604-775 ...WASHER, BACKUP...WASHER, BACKUP
-
193604-739 ...NUT...NUT
-
203604-772 ...PISTON, FLOATING...PISTON, FLOATING
-
213604-773 ...SLEEVE, WEAR...SLEEVE, WEAR
-
223603-618 ...NUT, ADJUSTER...NUT, ADJUSTER
-
233604-830 ...BODY, SHOCK...BODY, SHOCK
-
241621-728 ...DECAL, WARNING - HIGH PRESSURE...DECAL, WARNING - HIGH PRESSURE
-
252704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 26-27)...END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
263604-751 ......VALVE, PRESSURE (INC. 27)......VALVE, PRESSURE (INC. 27)
-
263604-751 ......VALVE, PRESSURE (INC. 27)......VALVE, PRESSURE (INC. 27)
-
273604-733 .........O-RING, VALVE.........O-RING, VALVE
-
283604-750 ...SCREW, MACHINE...SCREW, MACHINE
-
293604-906 ...BEARING...BEARING
-
305639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
310604-790 COVER, SHOCKCOVER, SHOCK
-
321704-736 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
333604-200 RETAINER, SPRINGRETAINER, SPRING
-
343604-273 AXLEAXLE
-
358408-045 SCREW, CAPSCREW, CAP
-
362623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
