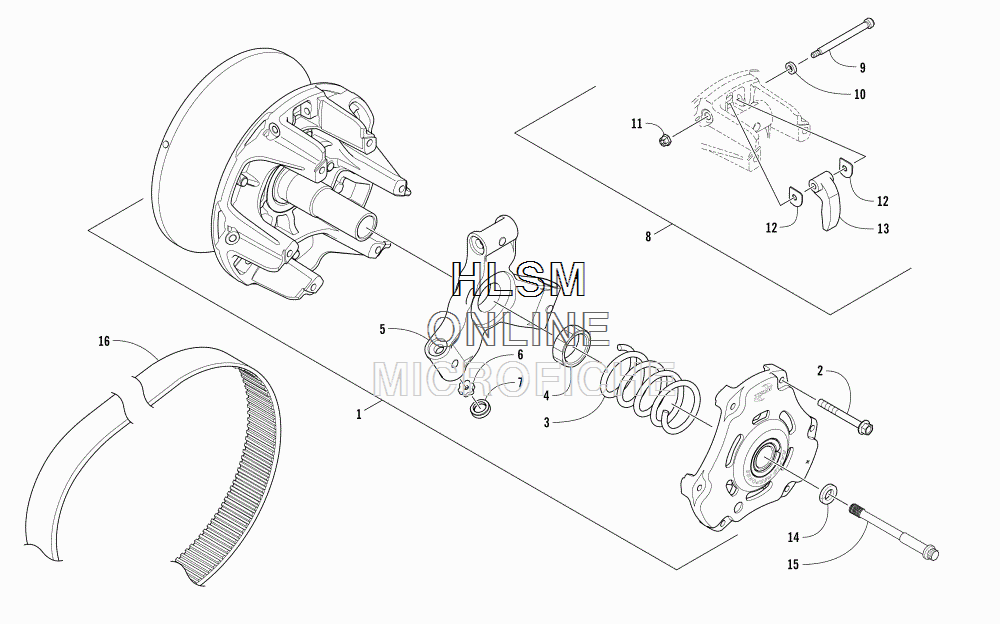

DRIVE CLUTCH для Arctic Cat ZR 7000 SNO PRO 129 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
10746-887 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-8, 10-13)CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-8, 10-13)
-
20646-950 ...SCREW, SHOULDER...SCREW, SHOULDER
-
30646-469 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
40646-958 NUT, JAMNUT, JAM
-
50646-955 SPIDERSPIDER
-
60646-951 PLUG, TORQUE BUTTONPLUG, TORQUE BUTTON
-
70646-465 BUTTON, TORQUE - PRIMARYBUTTON, TORQUE - PRIMARY
-
87639-127 KIT, CAM ARM (INC. 9-12)KIT, CAM ARM (INC. 9-12)
-
90823-396 ...PIN, CAM ARM...PIN, CAM ARM
-
102623-091 ...WASHER...WASHER
-
110823-399 ...NUT, LOCK...NUT, LOCK
-
120646-880 ...WASHER, THRUST...WASHER, THRUST
-
130646-872 ARM, CAMARM, CAM
-
140623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
150623-804 BOLT, CLUTCHBOLT, CLUTCH
-
160627-110 BELT, DRIVEBELT, DRIVE
